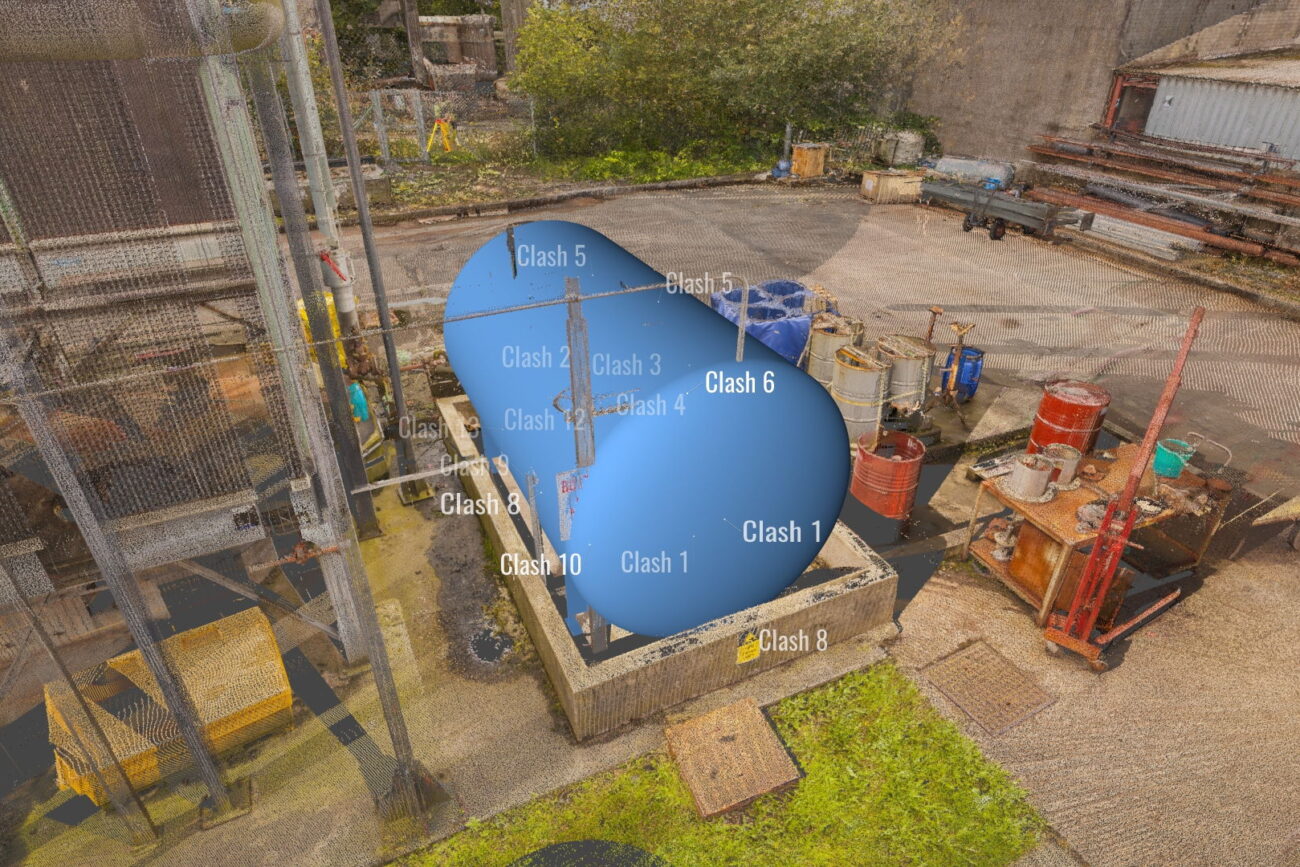

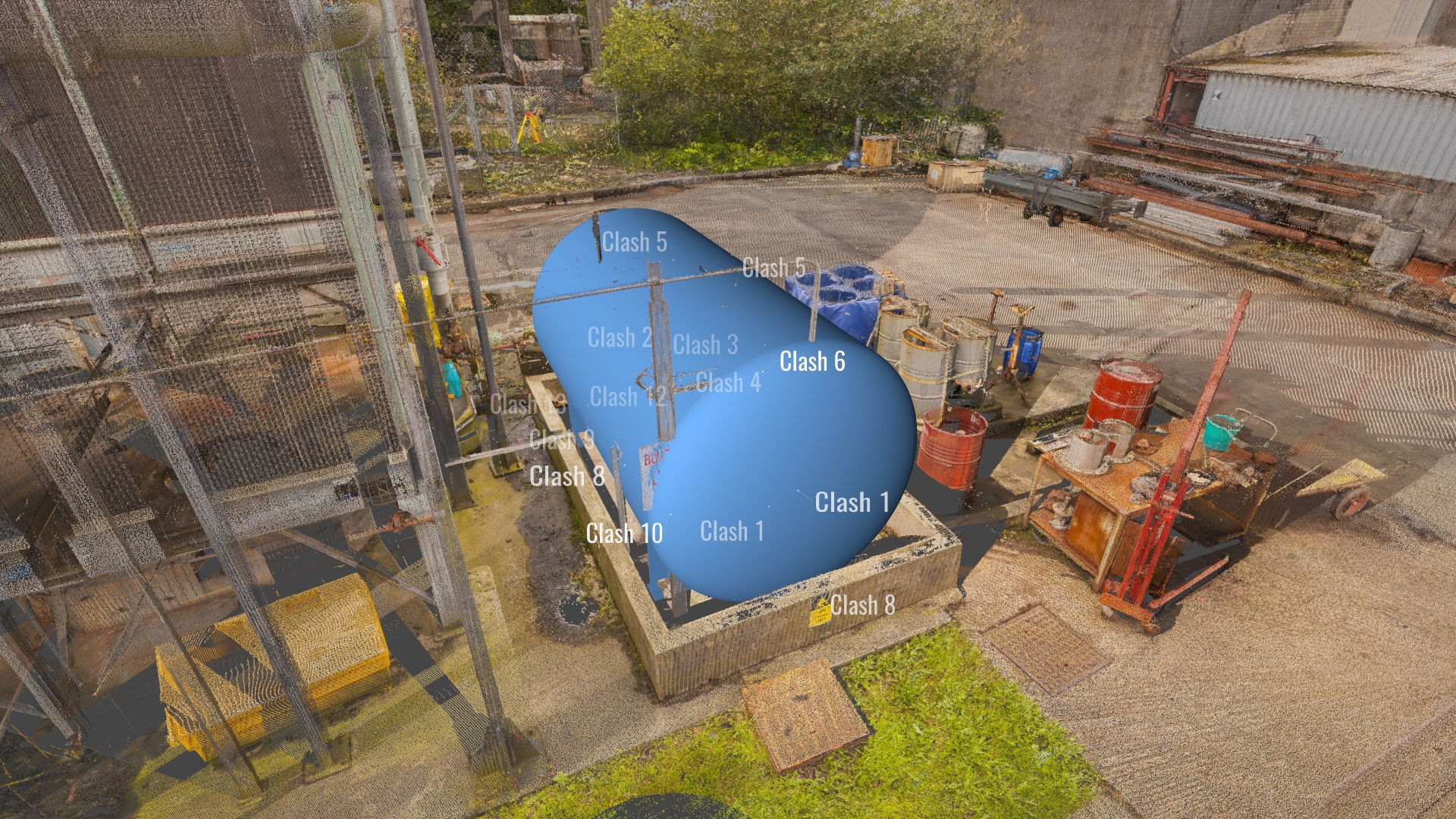

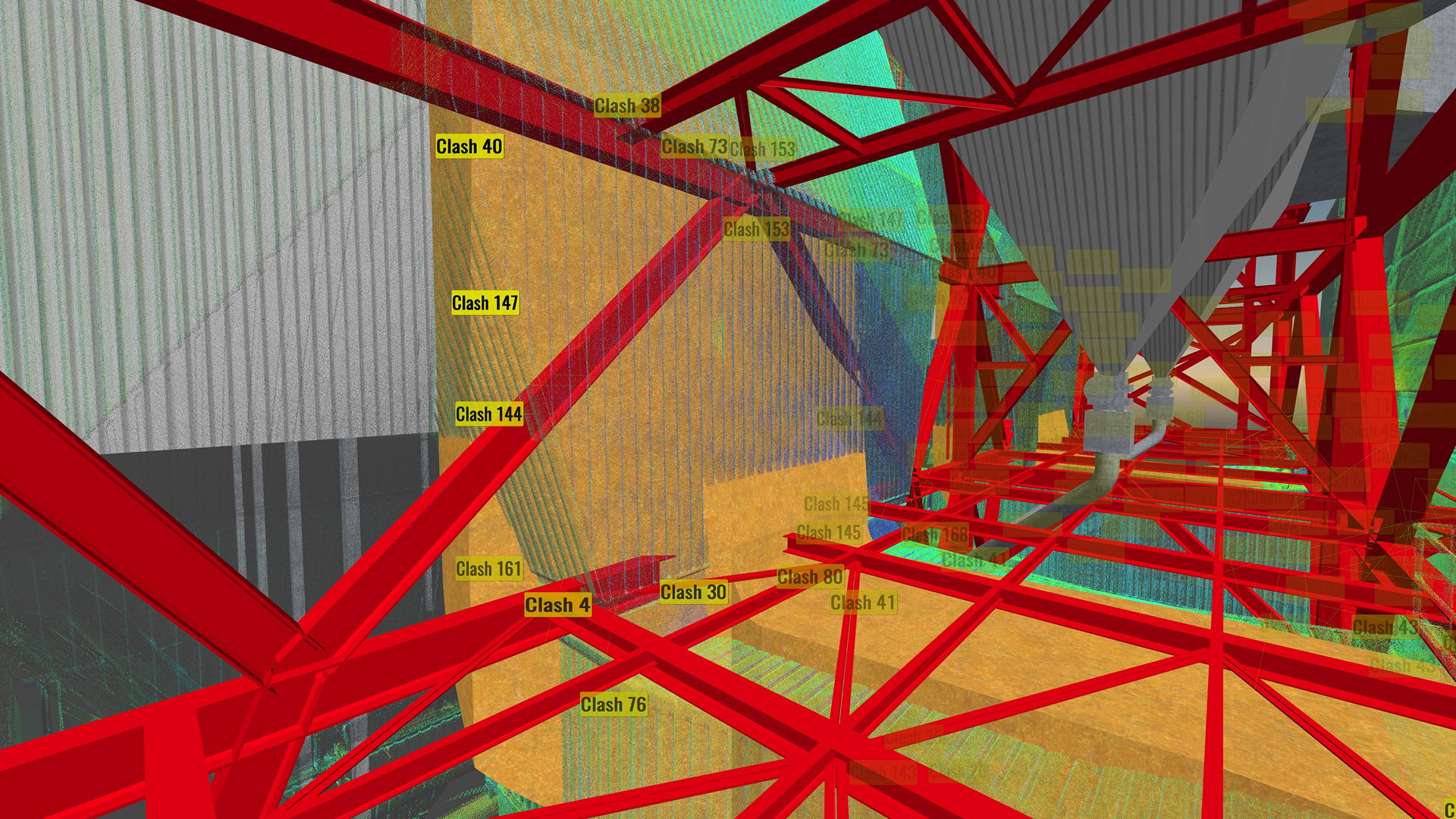

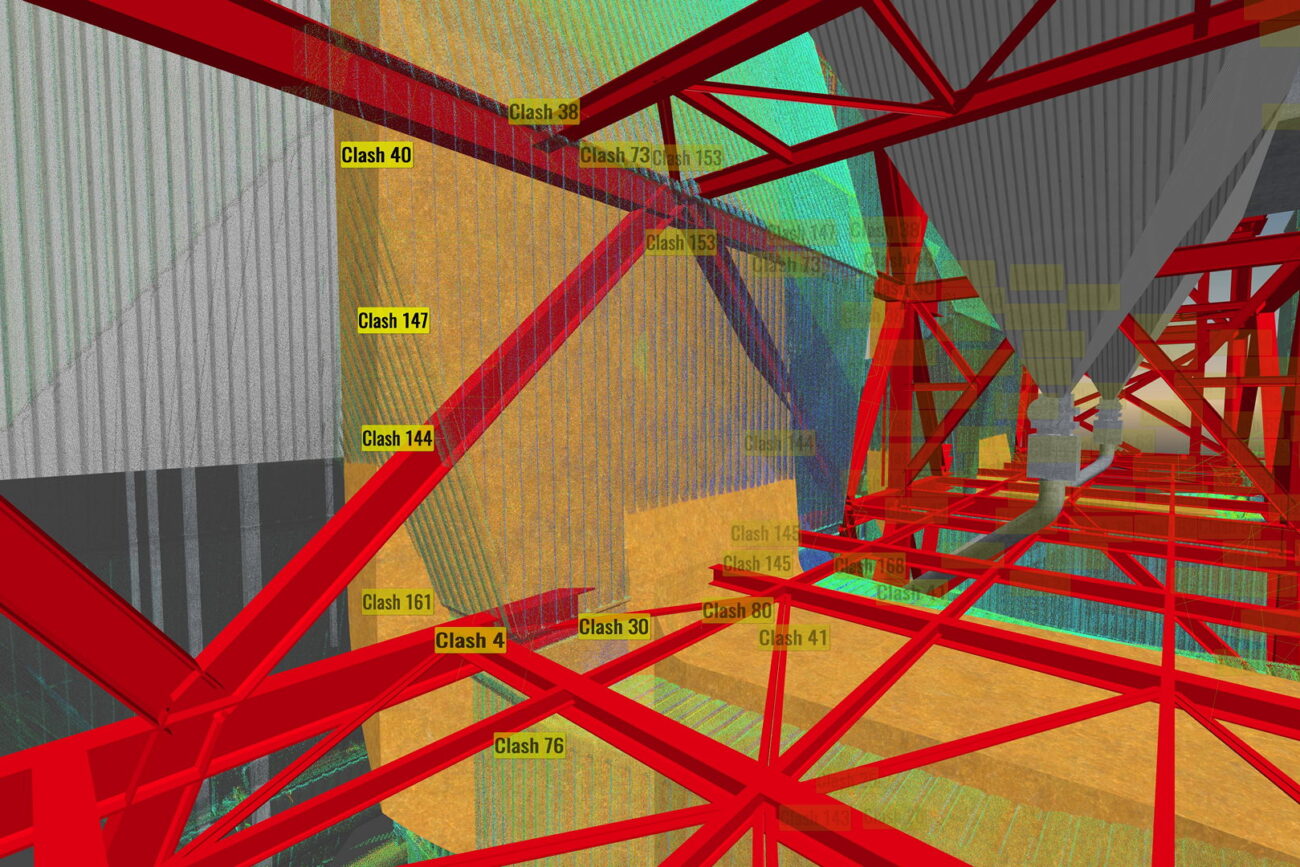

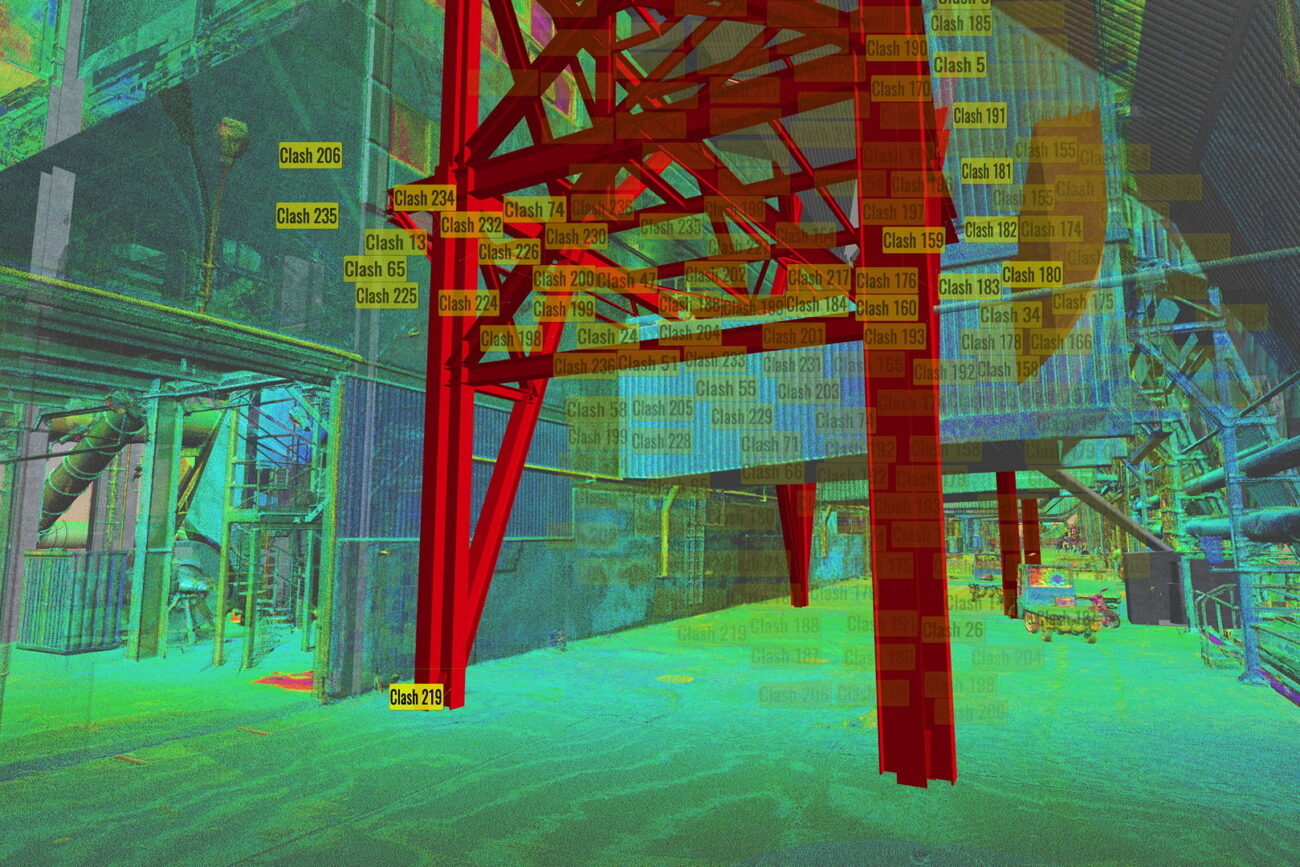

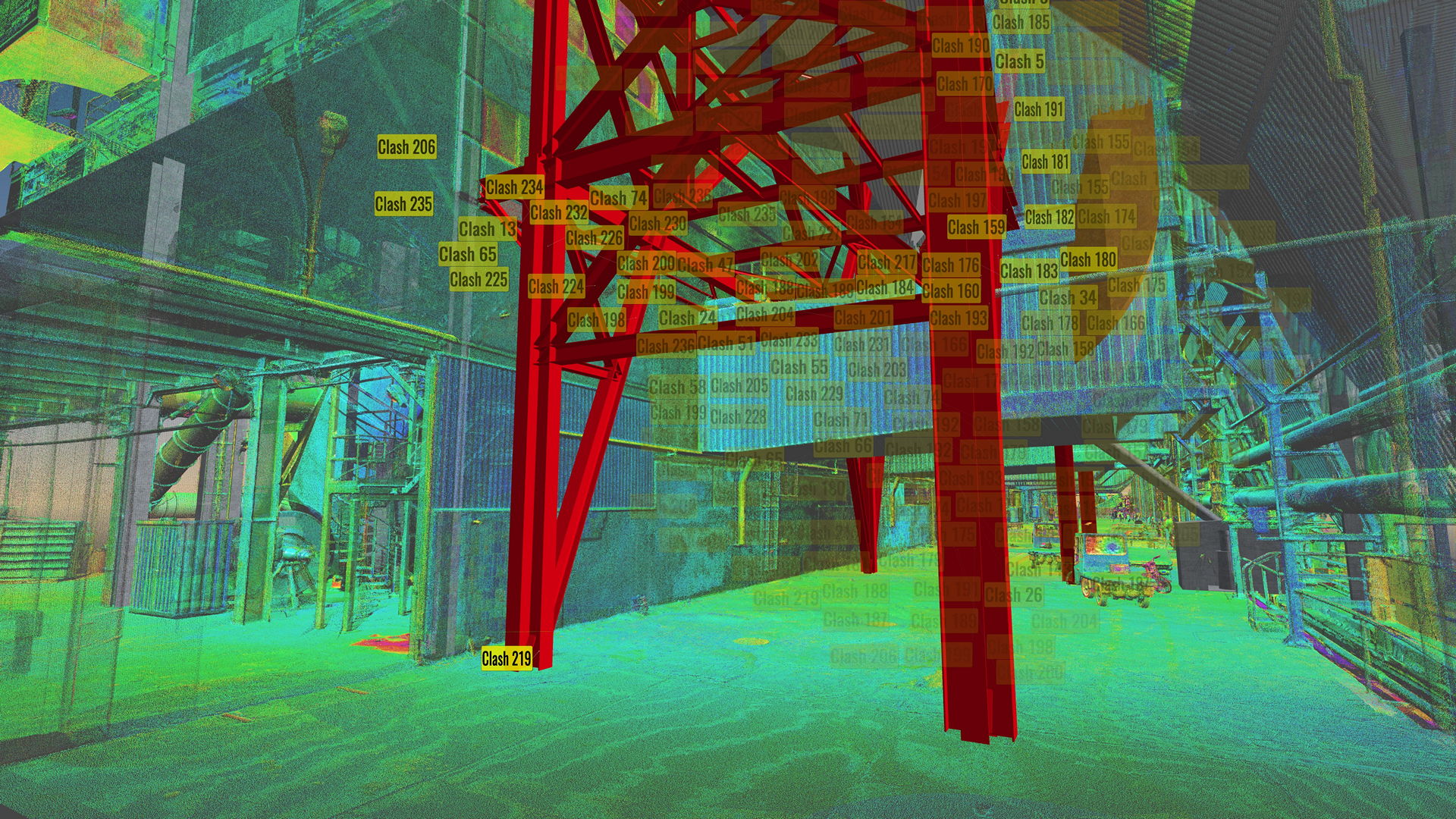

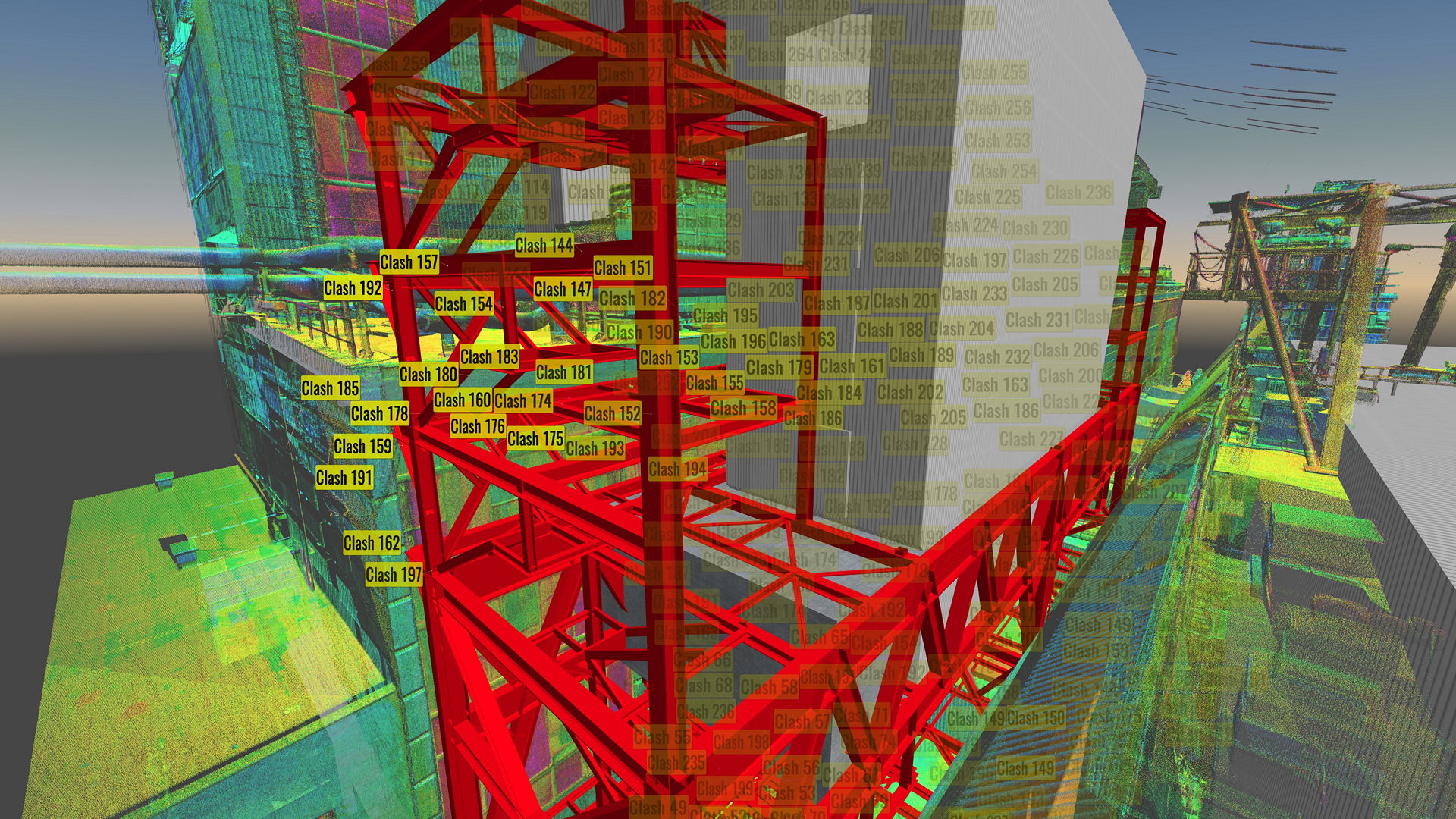

Clash detection allows the client to test the design against the existing environment to ensure it is both, robust and practical. In this way, any identified clash can be eliminated cost-effectively at the design stage, in contrast to its discovery on site triggering costly time delays and material expenses.
Employing scanning technology for construction verification ensures that the design concept is being carried out on site. Highlighting any deviations from the design at an early stage means that potential issues can be designed out, rather than dealt with on-site causing delays and increased costs.
It may be advisable to scan the object multiple times along the construction process, at the end of particular phases as the various construction-related work teams complete their works e.g., structural completion, installation of MEP and Fit-out.
When working within the BIM environment, the data collected in this way can also be used in connection with the design to update the model on a continuous basis. This, in turn, leads to a far more accurate as-built model to be delivered to the client upon completion.
Cloud to cloud comparisons can also be performed allowing the client to understand changes that affected the site over an extended time period.
PRACTICAL APPLICATIONS INCLUDE:
Additional check of the designed structures before construction
Check on the design of structures or installations before and during the construction process
PROJECT EXAMPLES – CLASH DETECTION:
BALLAST WATER TREATMENTClash detection, VIDEOS – OFFSHORE

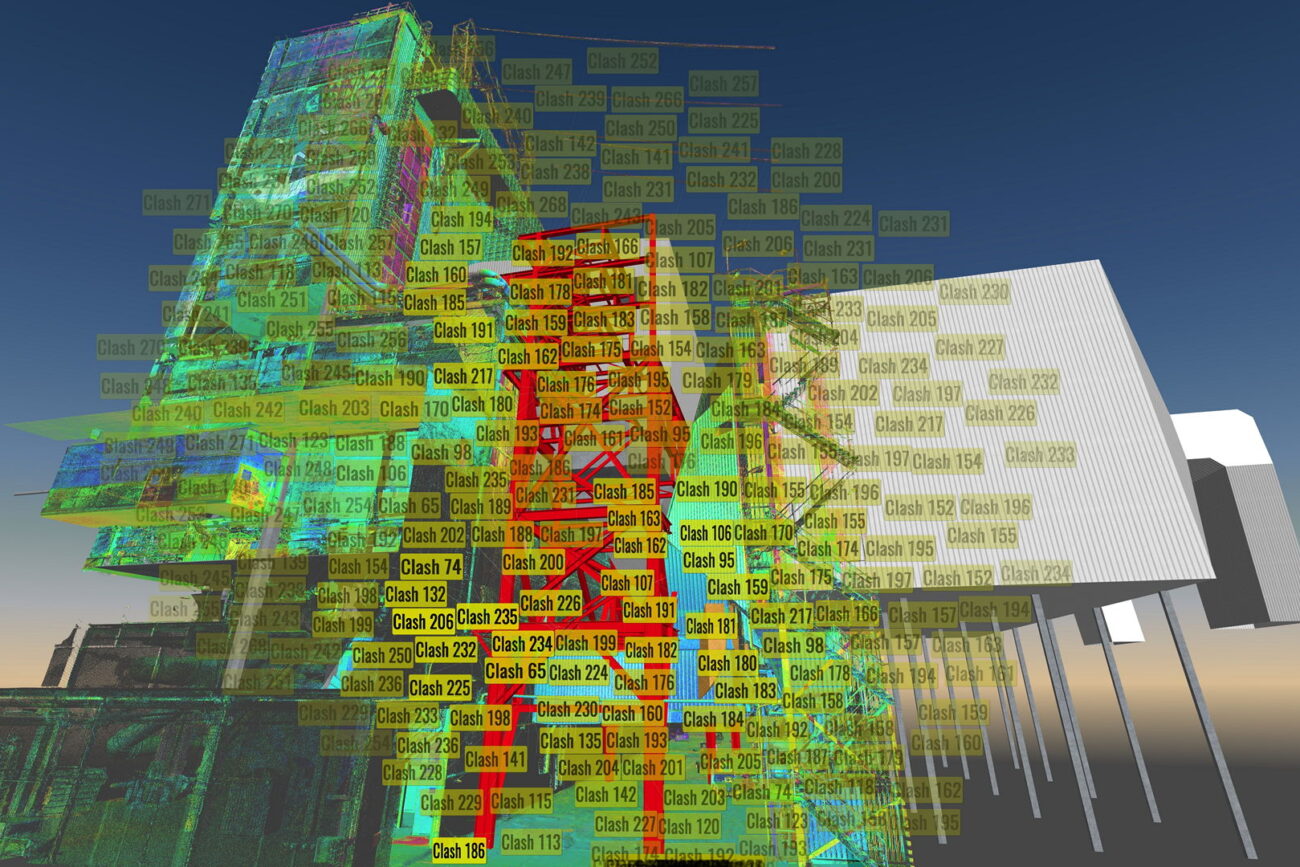

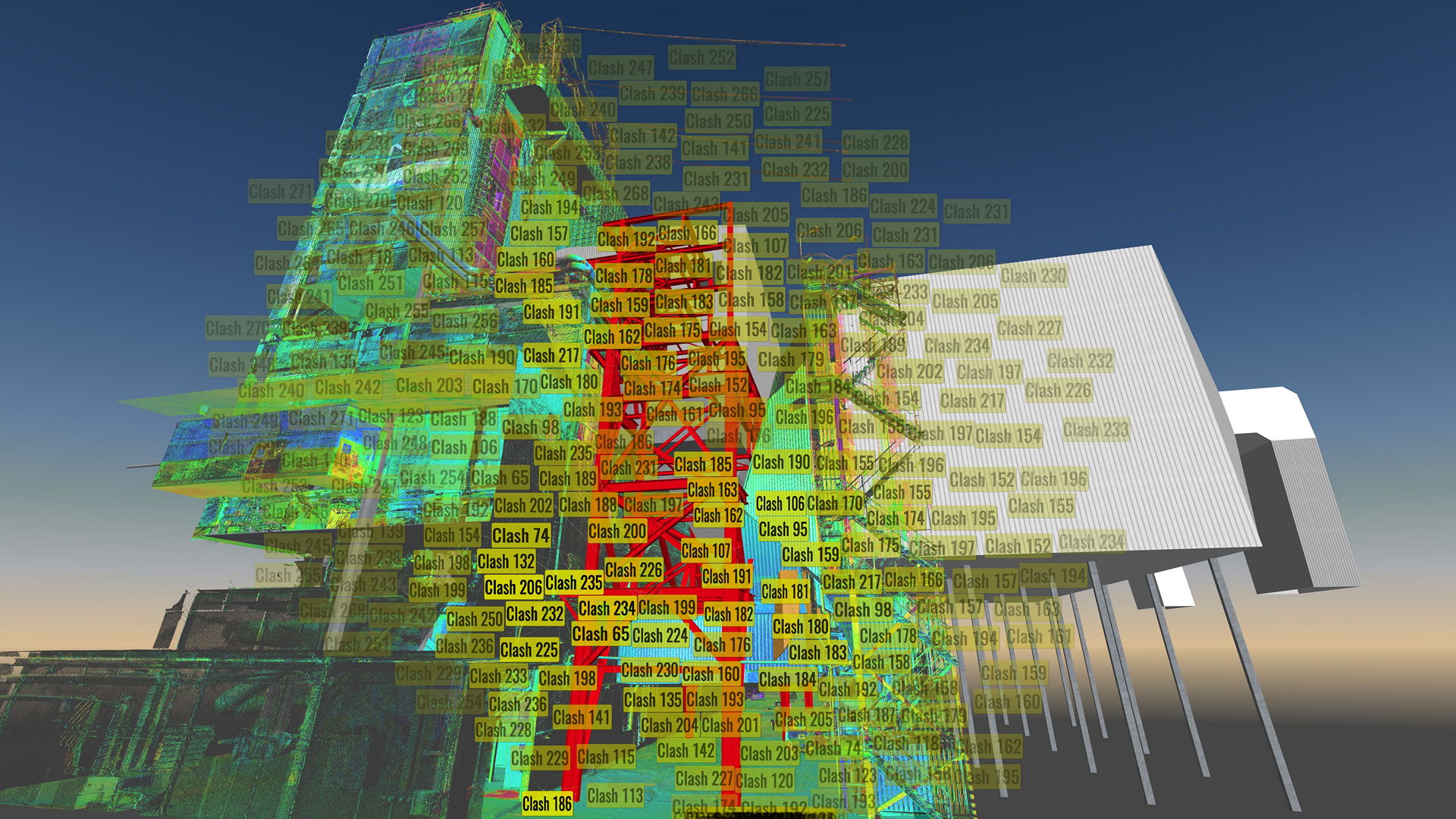

Clash detection · Plant project · Visual reportClash detection, VIDEOS - INDUSTRY & ENERGY

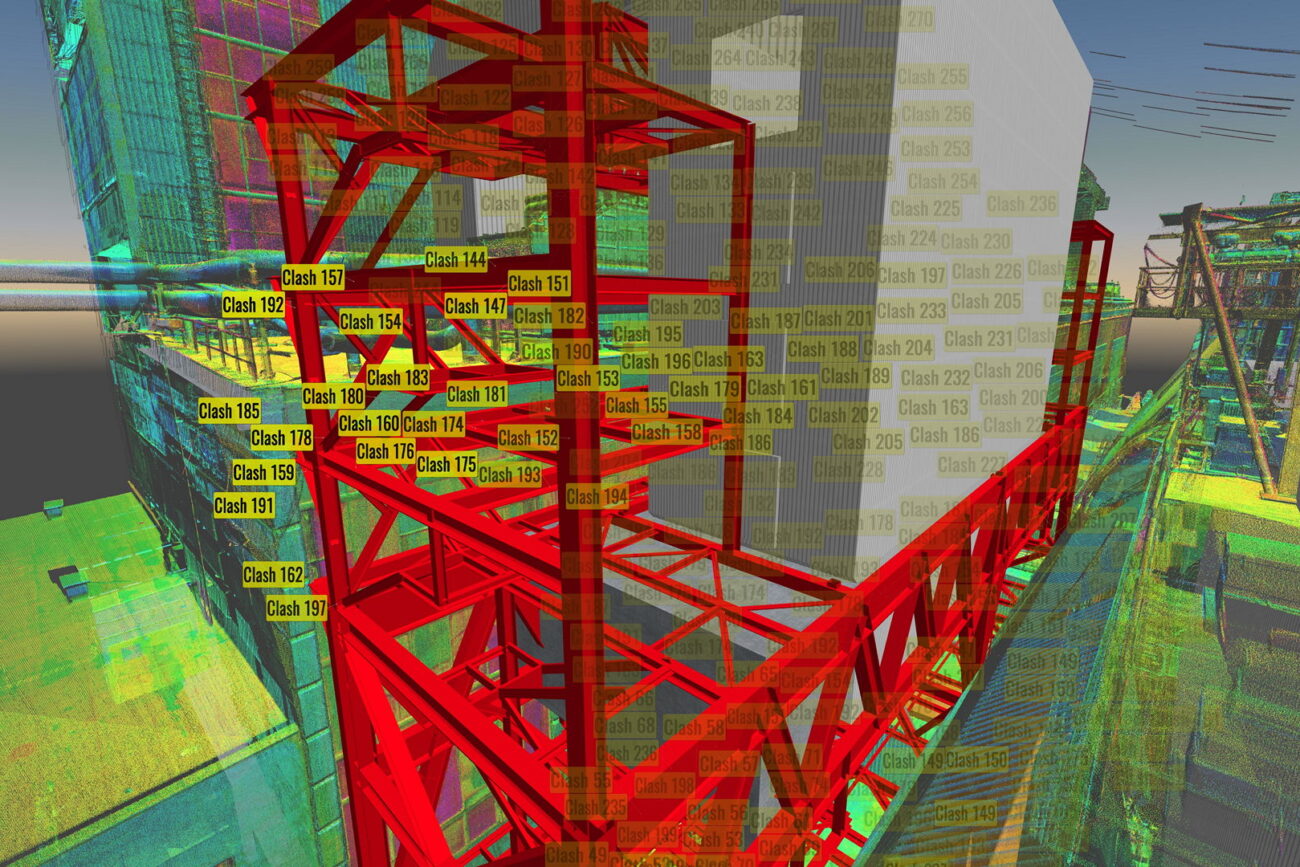

Industrial site in ScotlandAveva PDMS, Clash detection, Digital Plant, Industrial Applications, Registered Point cloud, Truviews
Scotland industrial site – clash detectionClash detection, VIDEOS - INDUSTRY & ENERGY
PKP SłomnikiClash detection, Industrial Applications, Registered Point cloud
Kozienice power plantClash detection, Industrial Applications, Registered Point cloud, Truviews
