DIMENSION CONTROL & INDUSTRIAL MEASUREMENT SERVICES

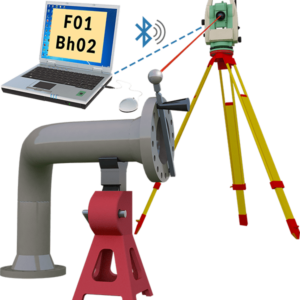

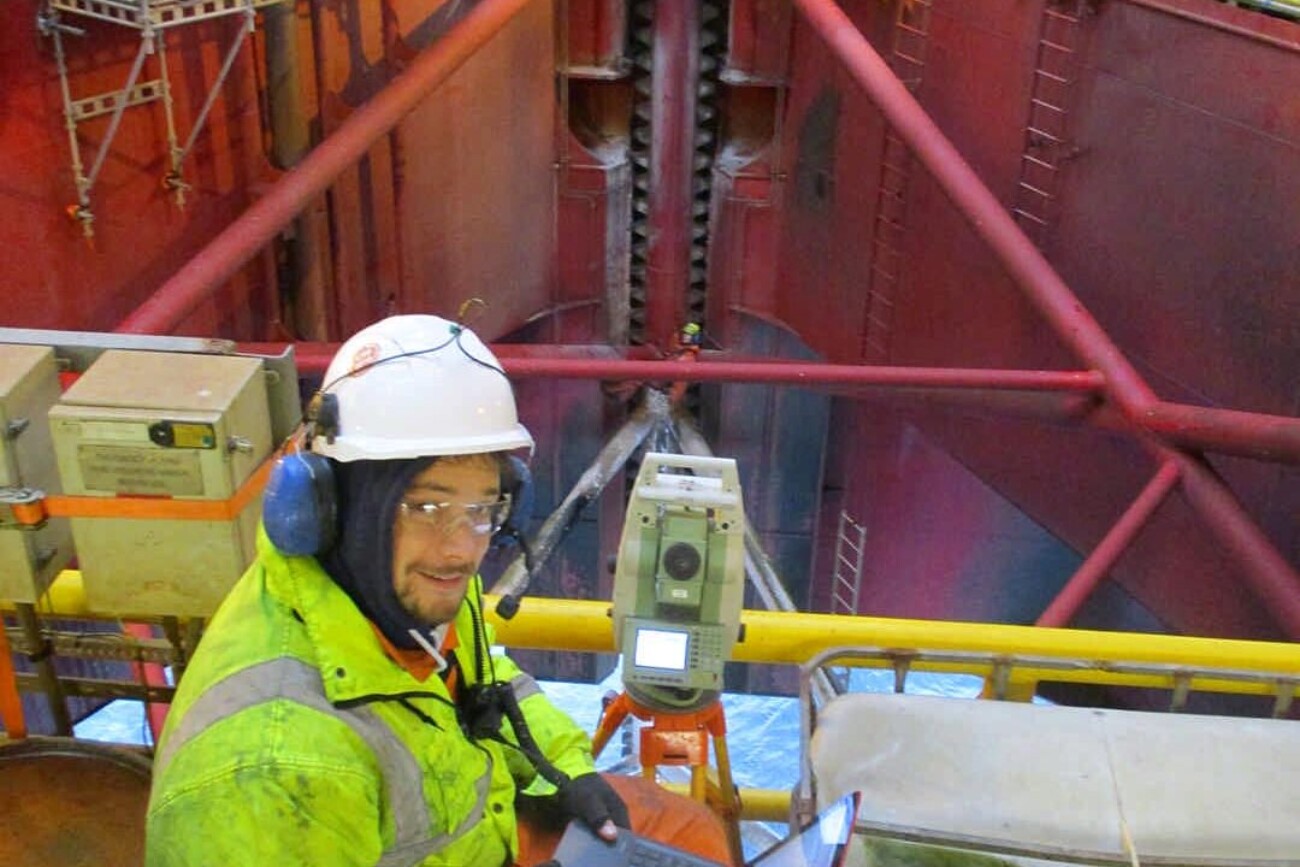

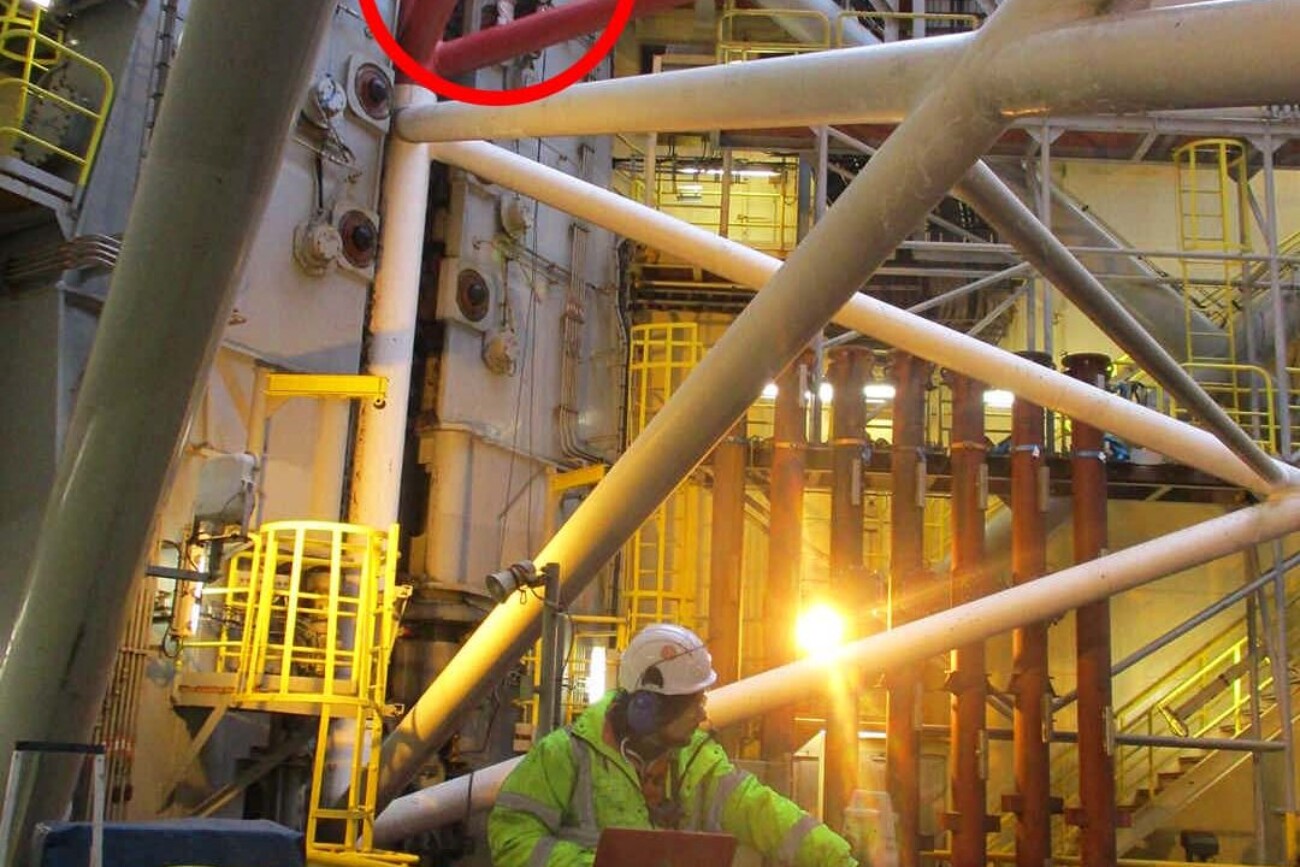

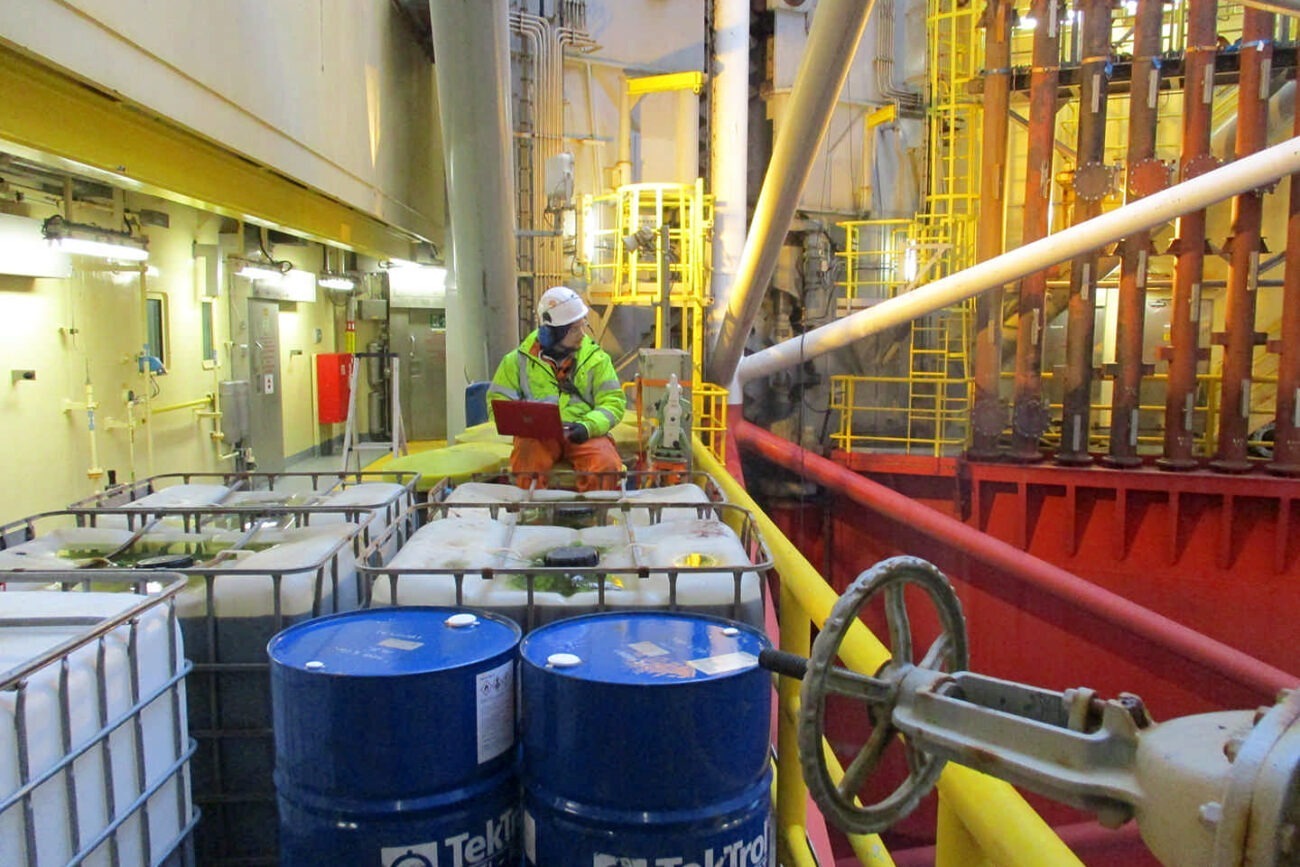

Great majorly of as-built spool surveys are interpreted from point clouds. Some applications require higher accuracy deliverable for that we offer special Total Station measurements services. Total station is controlled remotely with ATR sensors by a software along with dedicated devices holding the prism, thanks to this setup a job can be conduced by one surveyor.

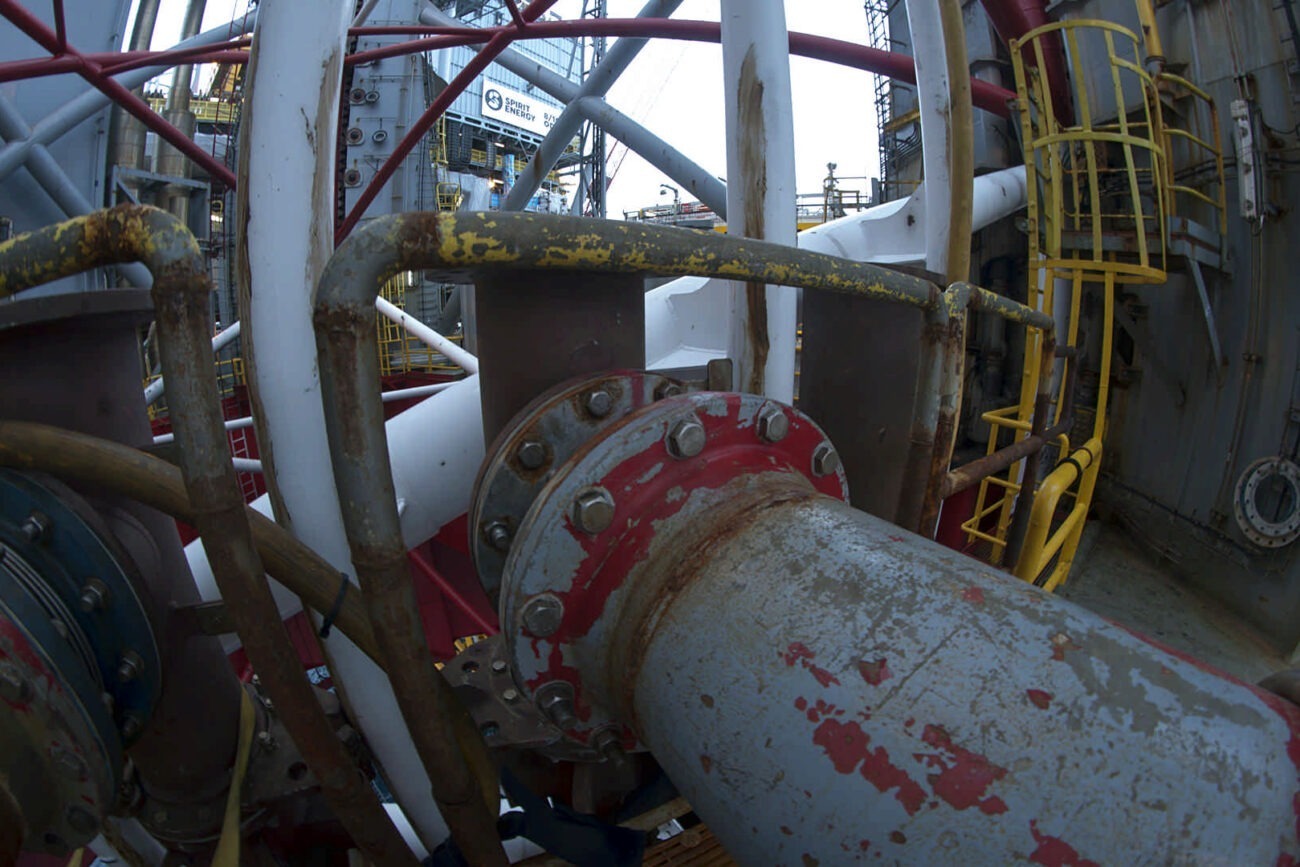

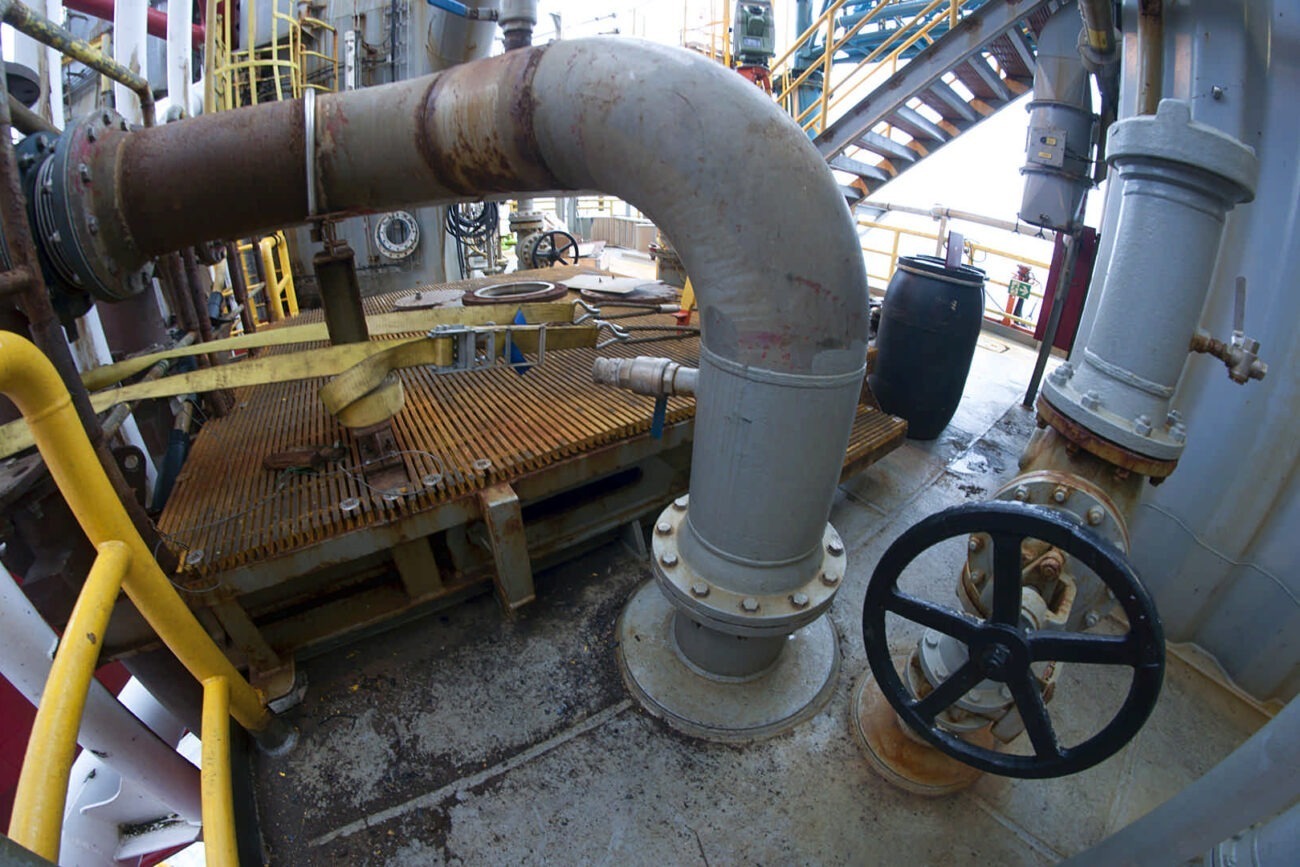

Spool inspection drawings and rapports can be generated from the same software, they include flange to flange alignment and bolt-hole rotation as well as full material lists.
Depending on the size of the task we may use either dedicated software Automet by Mike Lloyd Technical Services Ltd or for smaller projects our own workflow based on TS inbuilt app.
The workflow is being presented on the video below. Some screens in the video come from Automet.
BENEFITS:
Higher accuracy as-built data
Bolt-hole rotation in ISO on drawing
Flange alignment on ISO on drawing
Design integrity controlled in the fabrication stage
