LOCATION
Northern England, UK
SURVEYING EQUIPMENT
Scanner Z+F Imager 5010C and Scanner Riegl VZ-400, Leica TCRA 1101
TOTAL TIME SPENT
5 days on site, 15 days for data processing, registration, scan colouring
FINAL PRODUCT
Point cloud, RGB Truview, and later AVEVA PDMS model

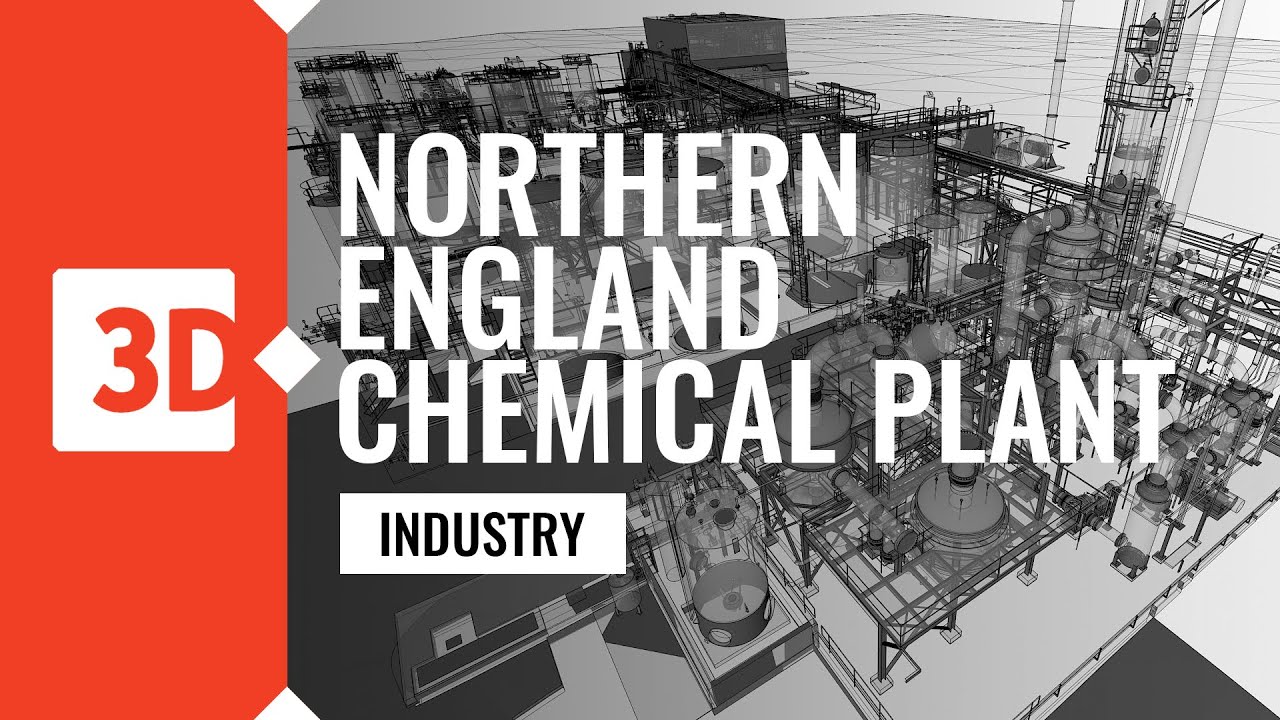

Aveva PDMS As-built model documentation of a large chemical plant
This was a relatively large chemical plant located in the north of the UK. Initially, the client commissioned a point cloud survey to be registered and delivered along with TruView in RGB (real colours). Subsequently, the client came back and commissioned an as-built PDMS model with catalogue, specifications and custom generated ISO drawings. Following further commissions, we have now completed a full PDMS model for the entire site.
Further to surveying and modelling at this site, we undertook further digital analysis works including clash detection for new installations, Tank leakage analysis and provided recommendations for the installation of barriers and Bunds to limit the extent of fluid leakage.
