LOCATION
Lviv, Ukraine
SURVEYING EQUIPMENT
Leica TCRA 1201 plus Total Station, Canon 5srd
TOTAL TIME SPENT
3 days on site, about 75 days processing in the office
FINAL PRODUCT
Point cloud, 2D CAD documentation, mesh model

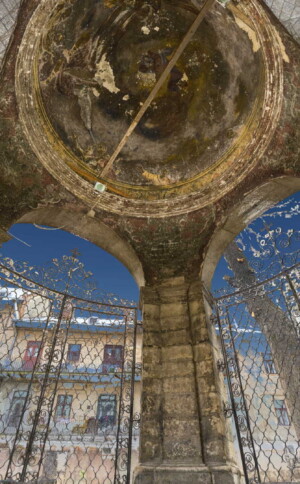

3d digitization of The Well of Saint John from Dukla
Commissioned by Institute Polonika digitalization of the Well of Saint John from Dukla in Lviv.The object of this project is located outside the Bernardine Church in Lviv. Due to its scale and geometry, we decided to use only photogrammetric tools – a particularly high resolution digital camera and geodetic total station. The second device served to measure control points necessary to set geolocation and the scale of the object.
As a result of this project we delivered 2D CAD documentation consisted of: sections, elevation views and location plan. In addition we generated orthophotos (metric photos) of every each elevation, based on high resolution mesh model. 3D mesh model, after appropriate reduction of net of triangular, turned into low-poly is suiting for publication in online sites like sketchfab. Previous, “raw” version of the mesh model was used to render objects animation which we published on our Youtube channel.
