LOCATION
Rotterdam, Netherlands
SURVEYING EQUIPMENT
Scanner Riegl VZ-400, Leica TCRA 1101 plus Total Station
TOTAL TIME SPENT
2 days, two-person team over 350 scanpositions, 4 days for data processing
FINAL PRODUCT

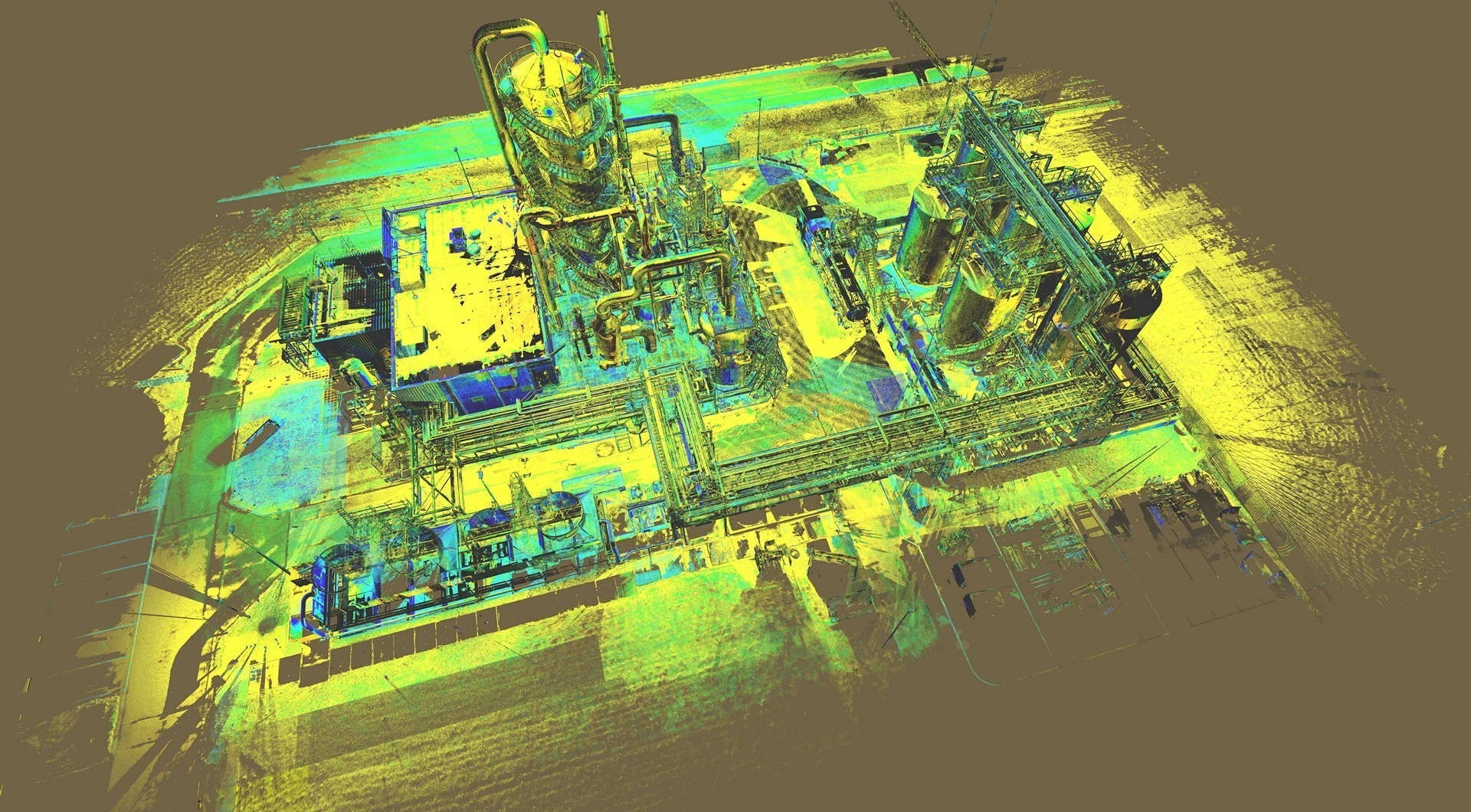

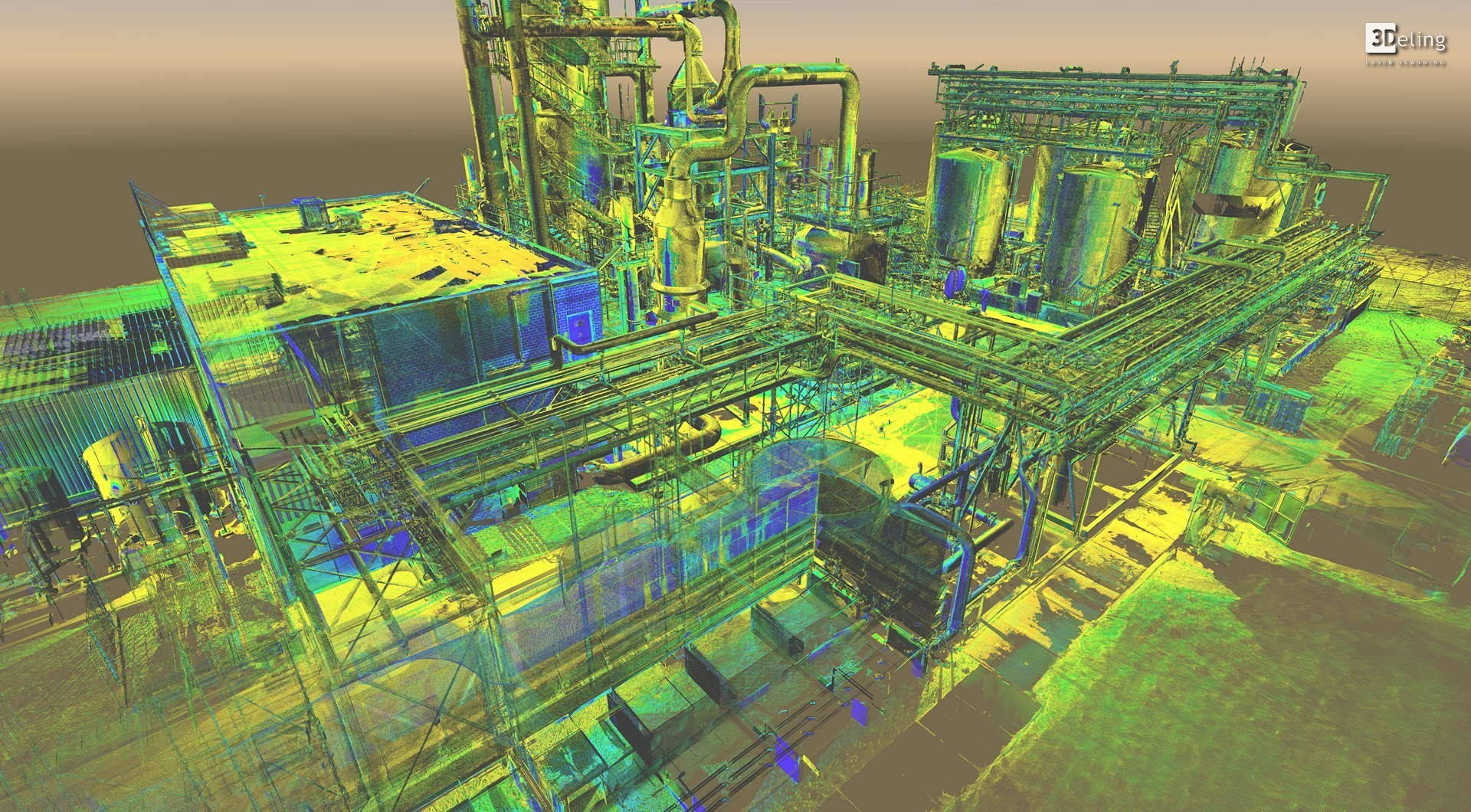

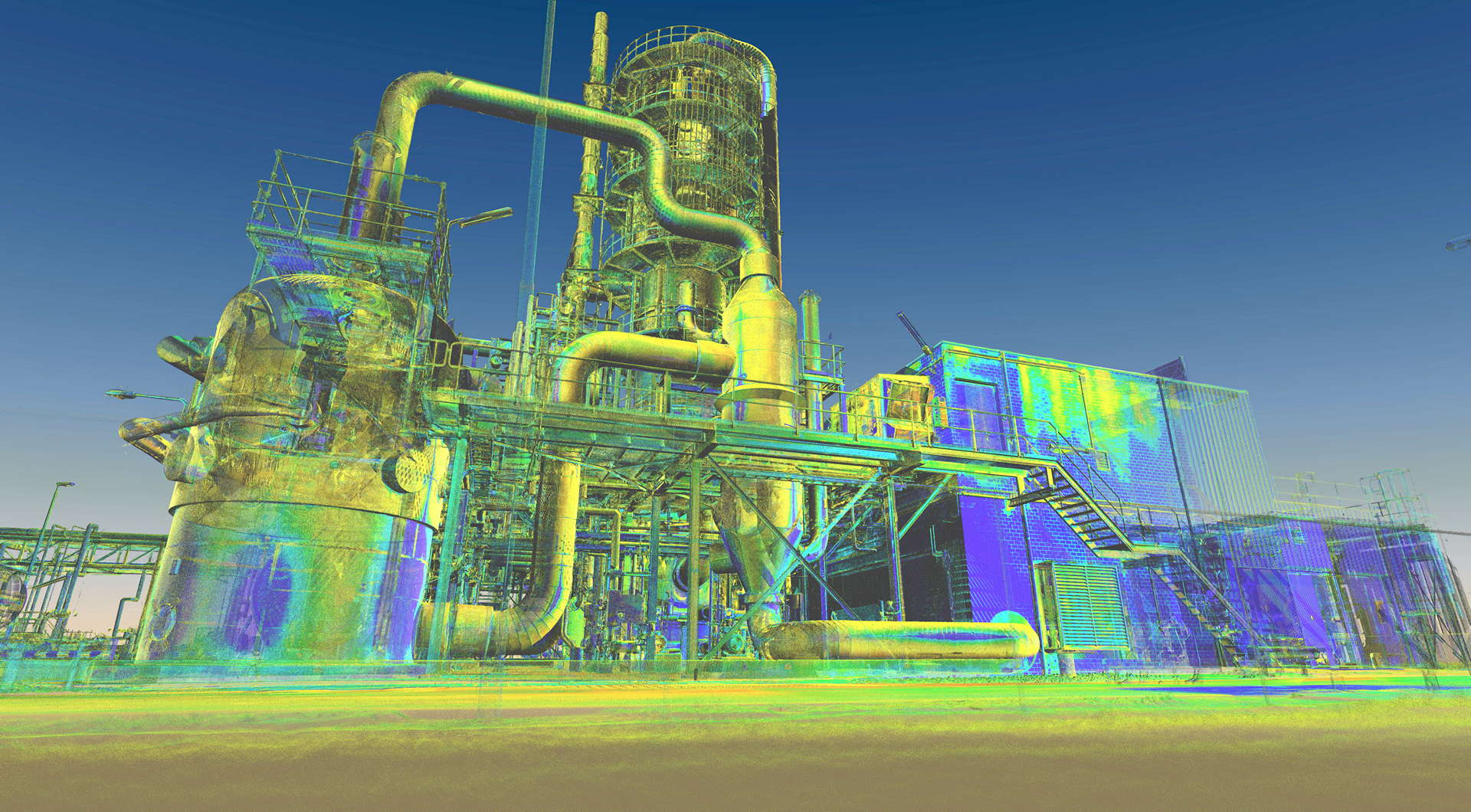

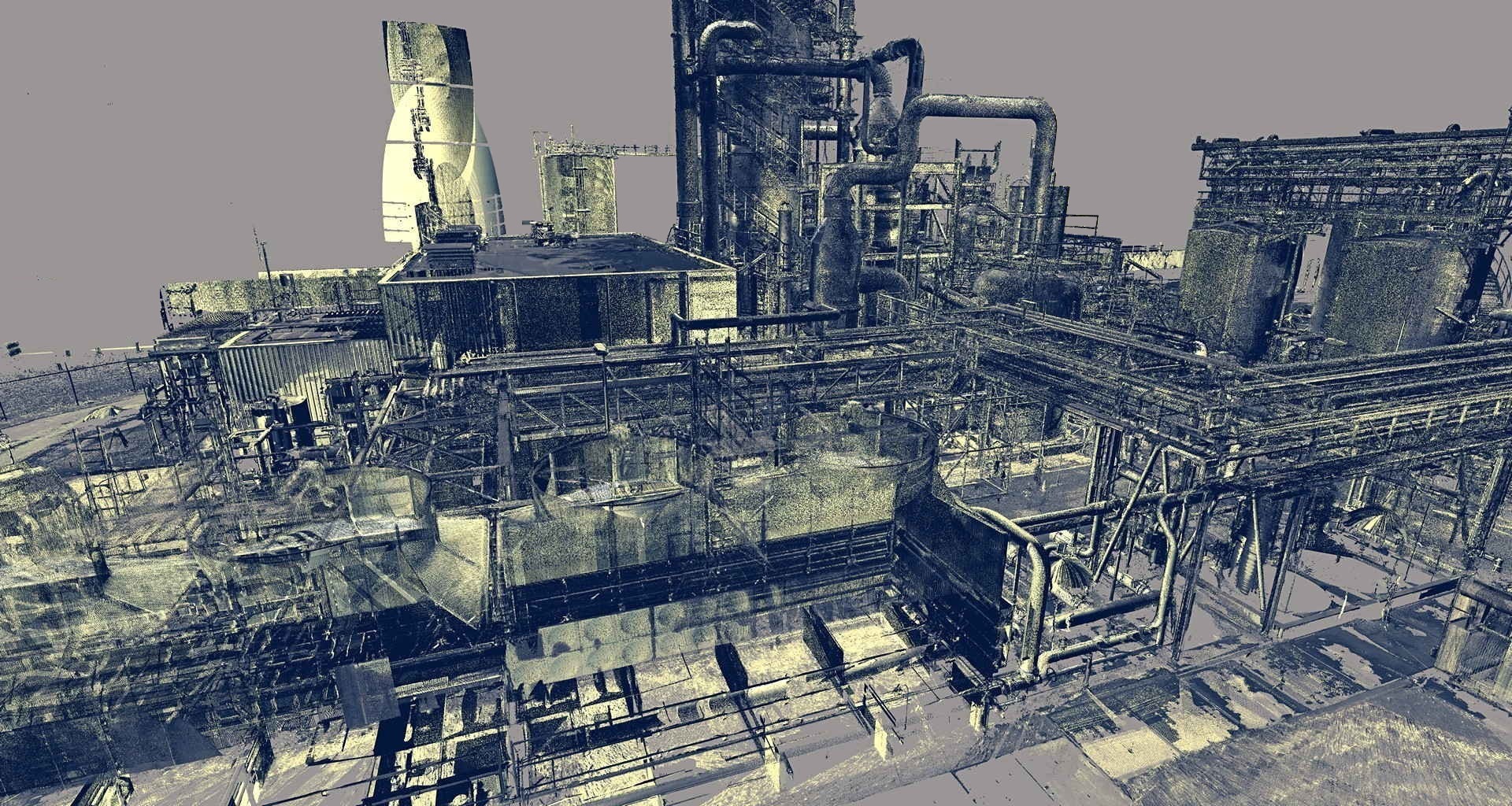

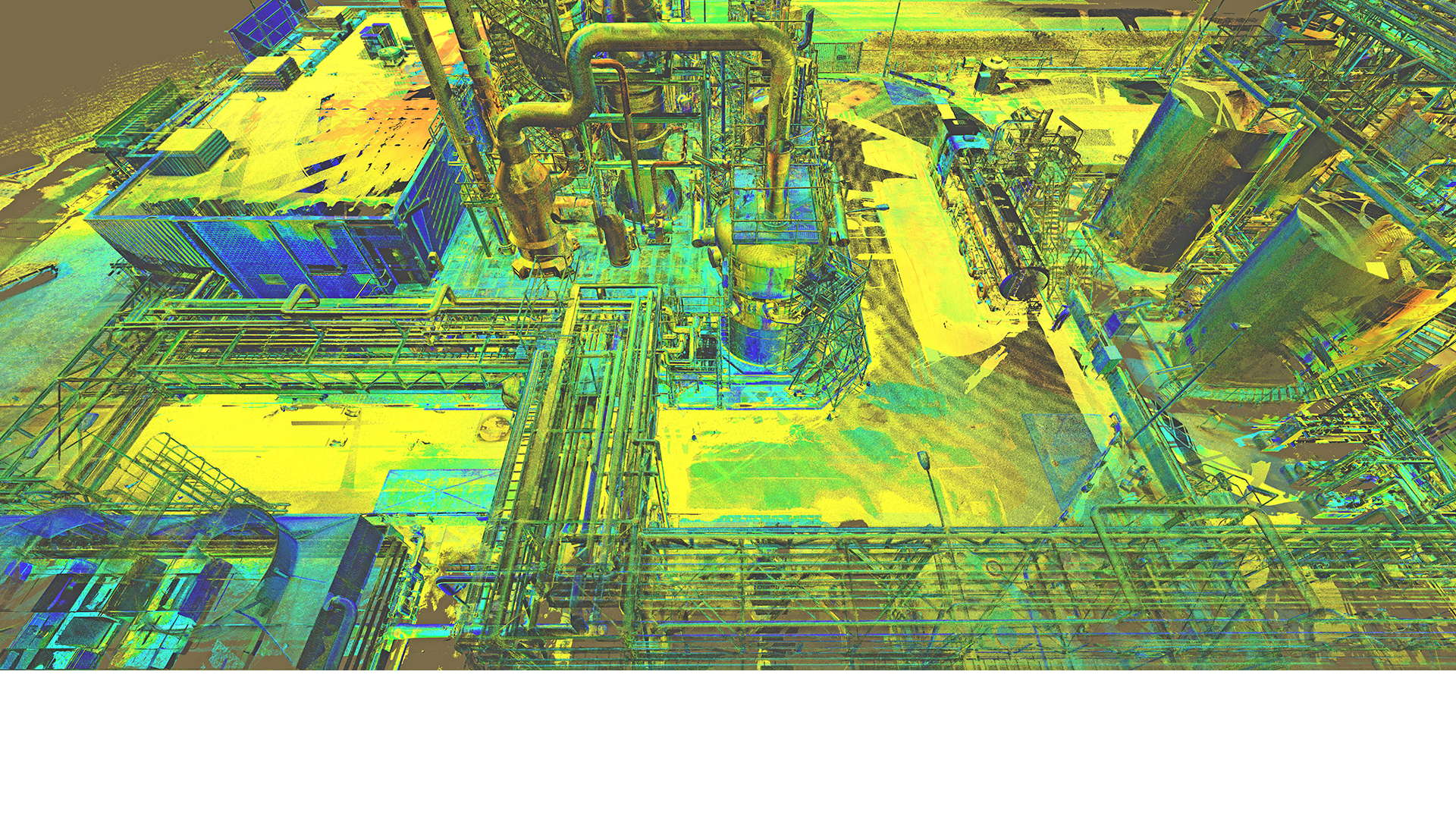

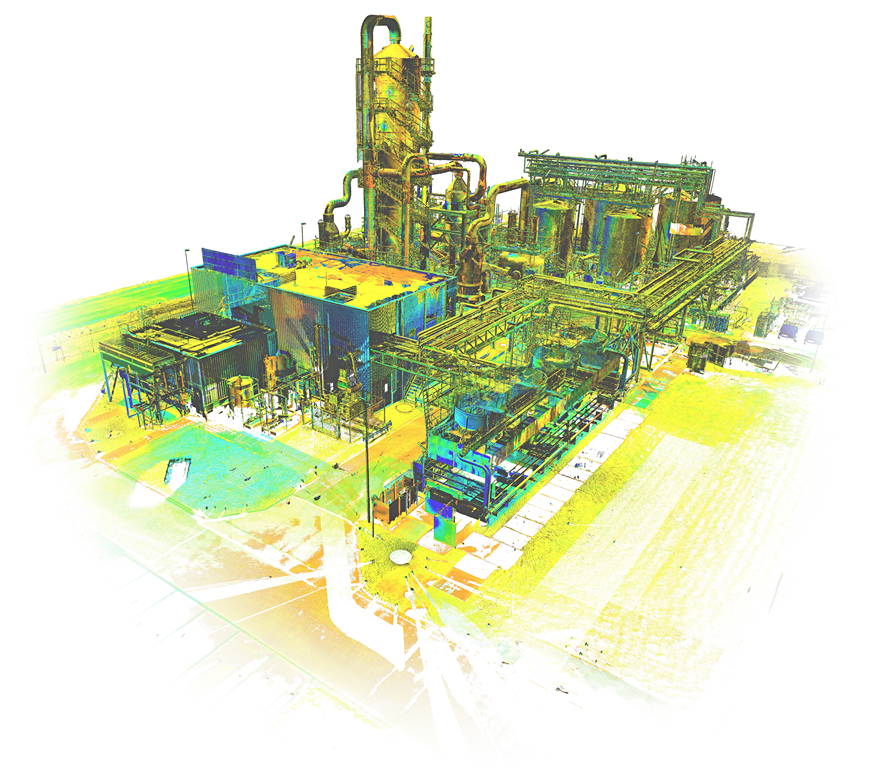

Registered point cloud and TruViews

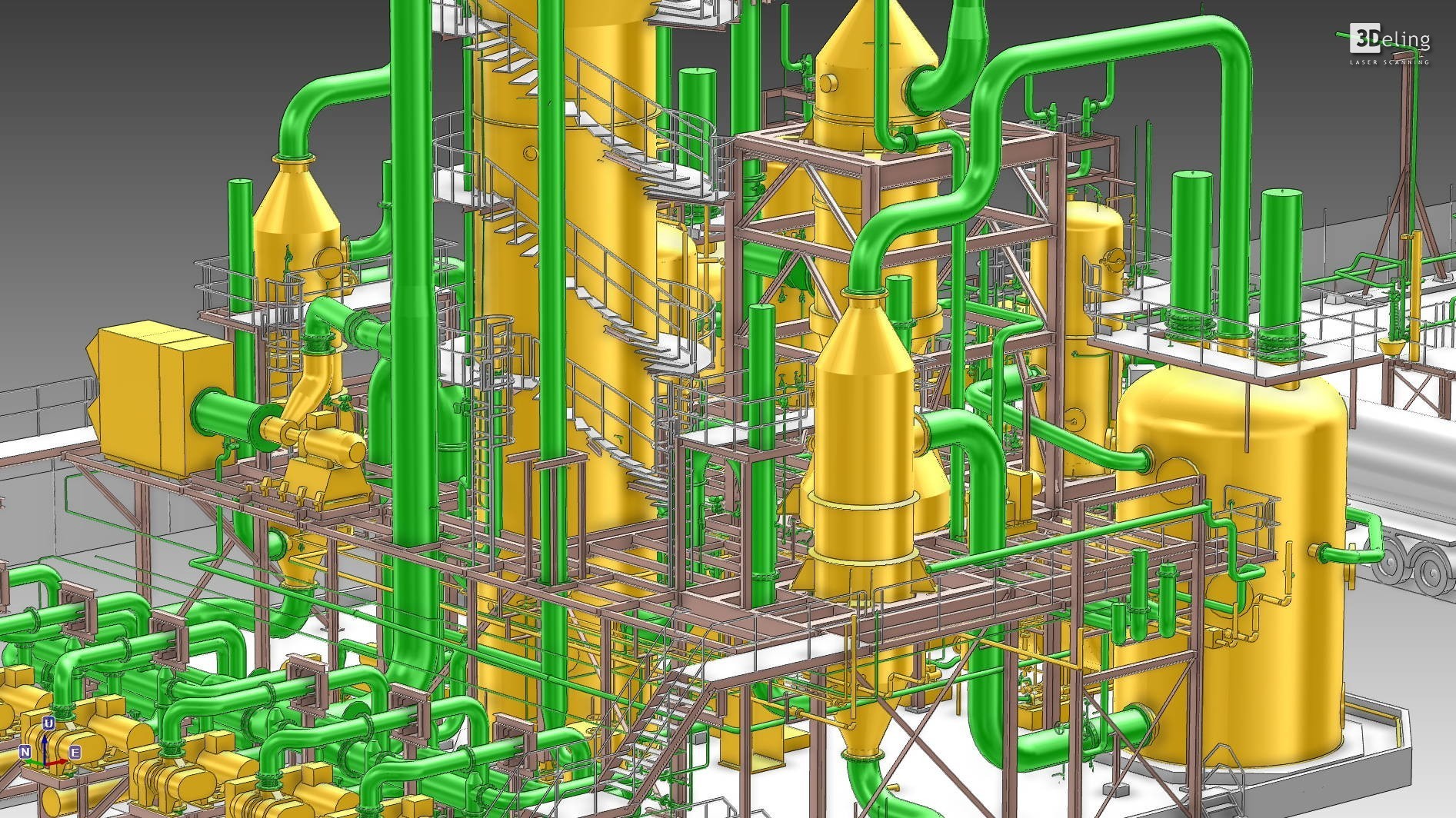

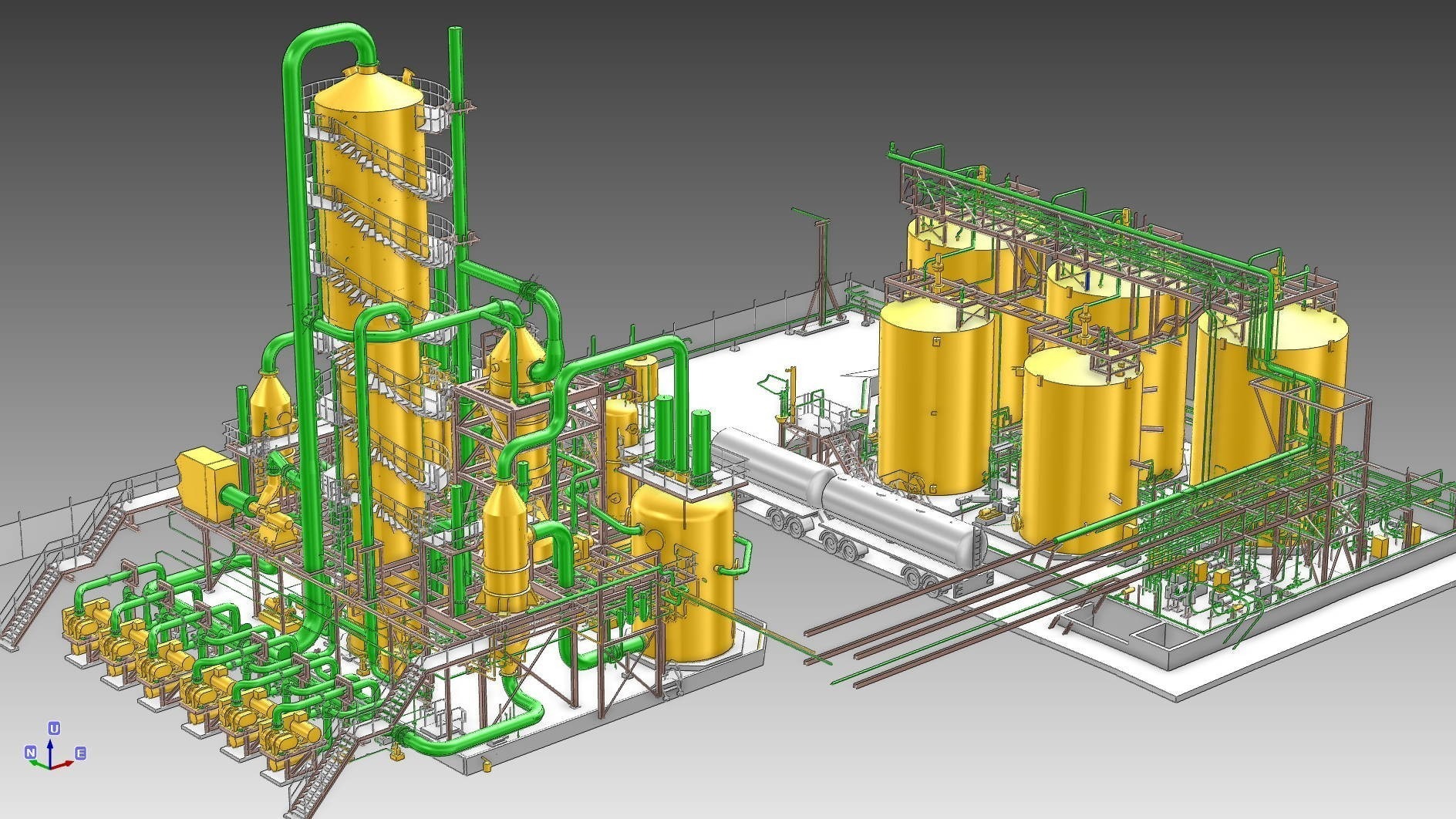

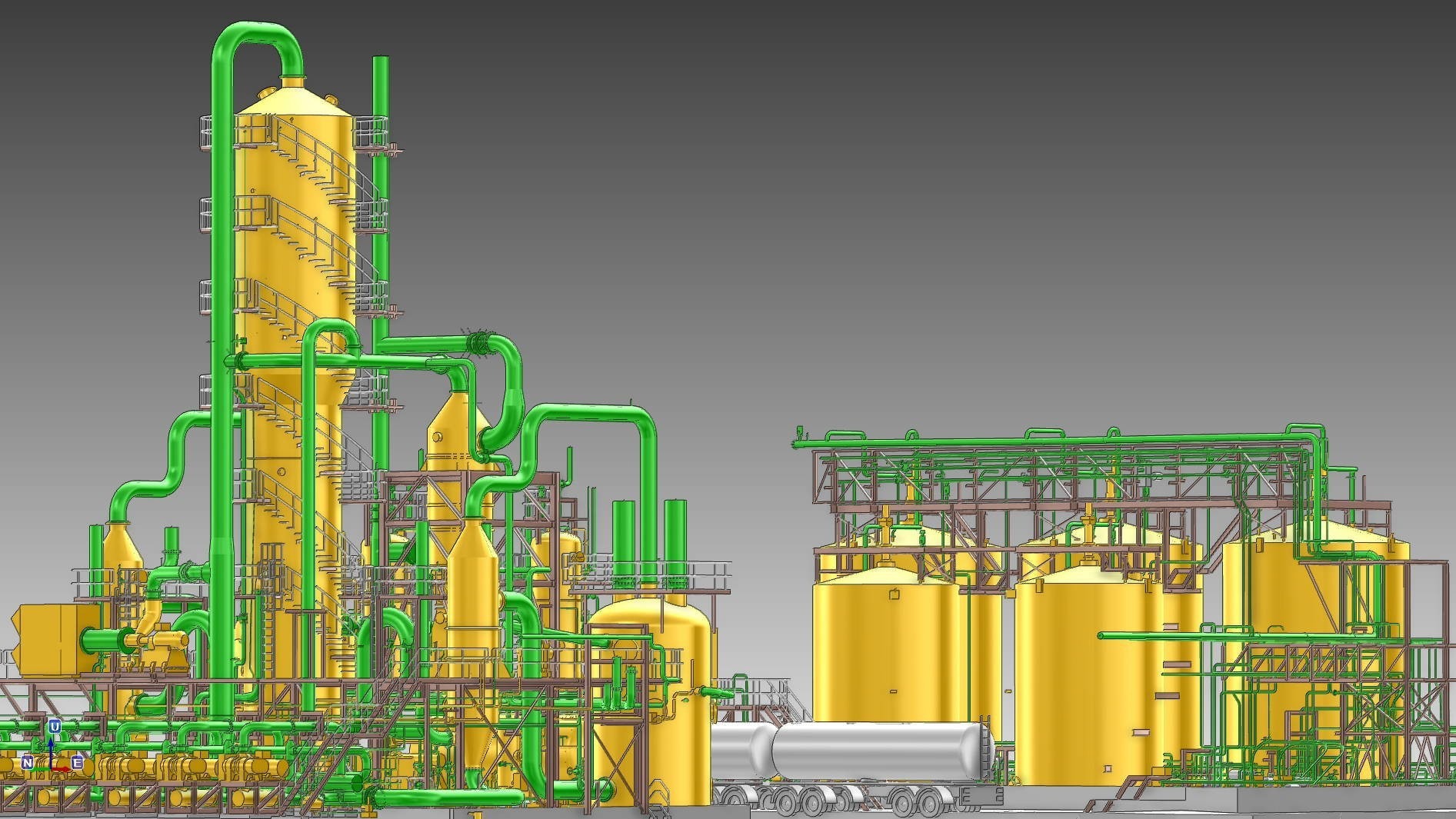

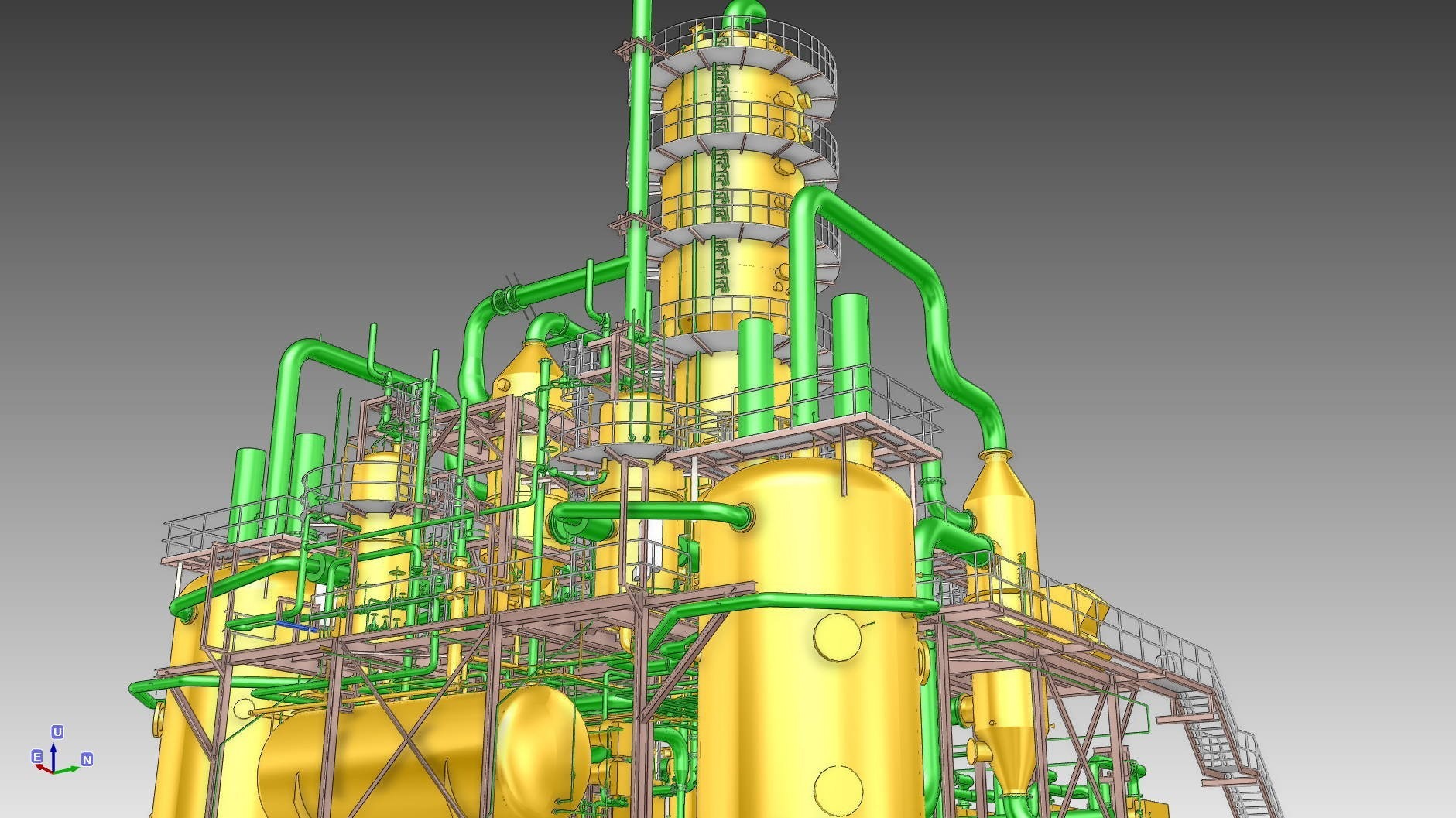

Aveva PDMS As-built model and clash verification in midsized chemical plant

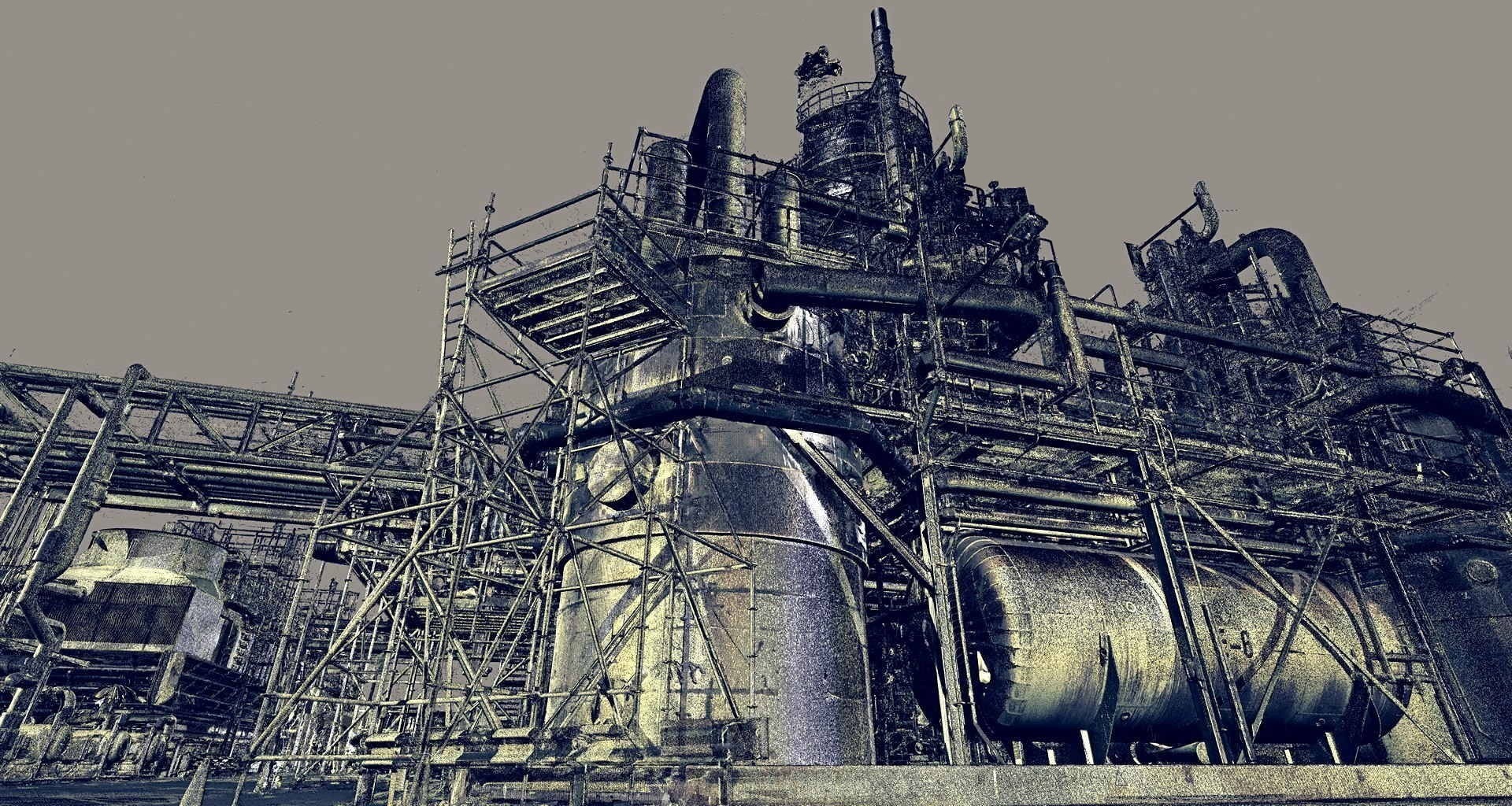

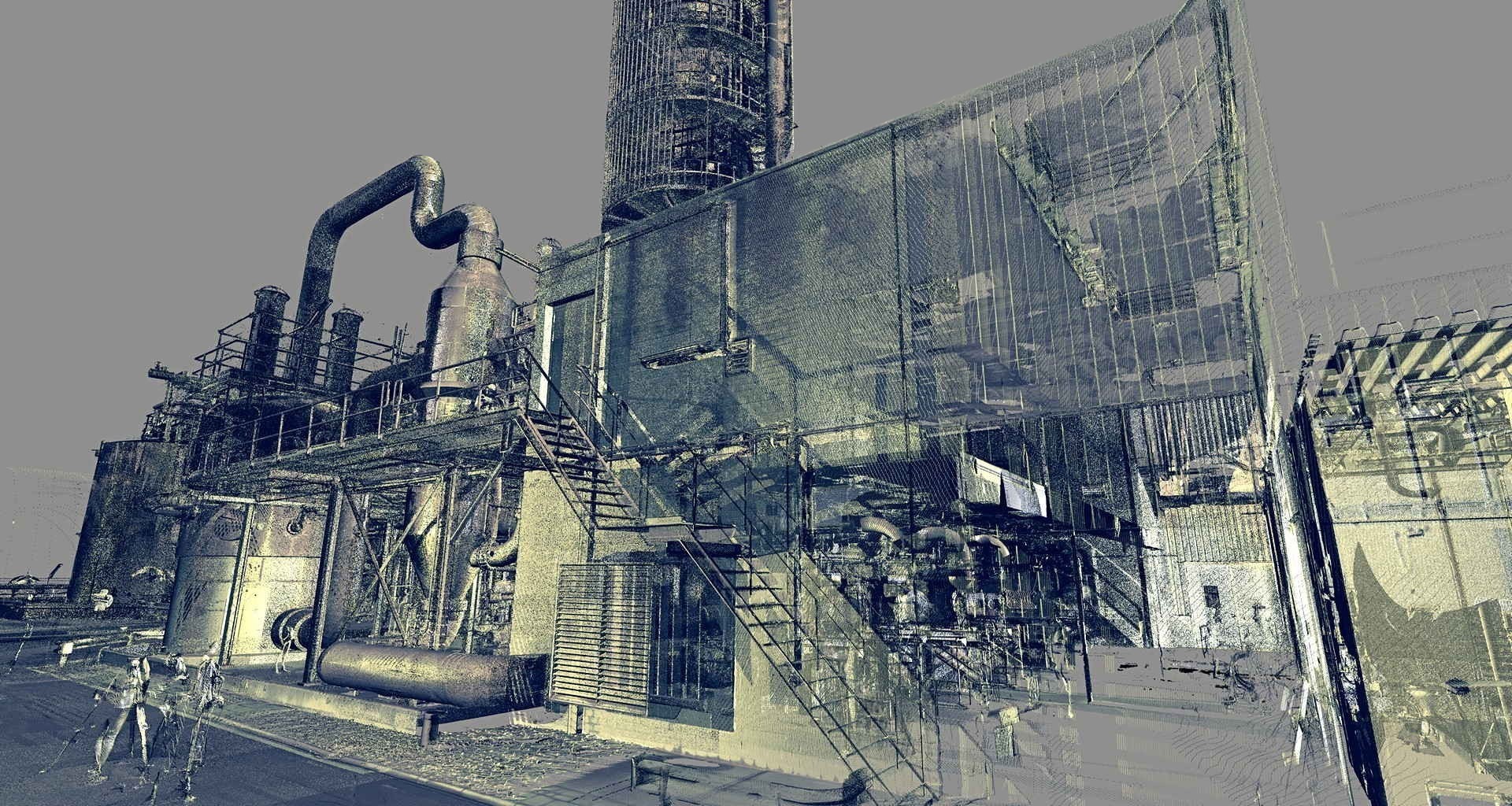

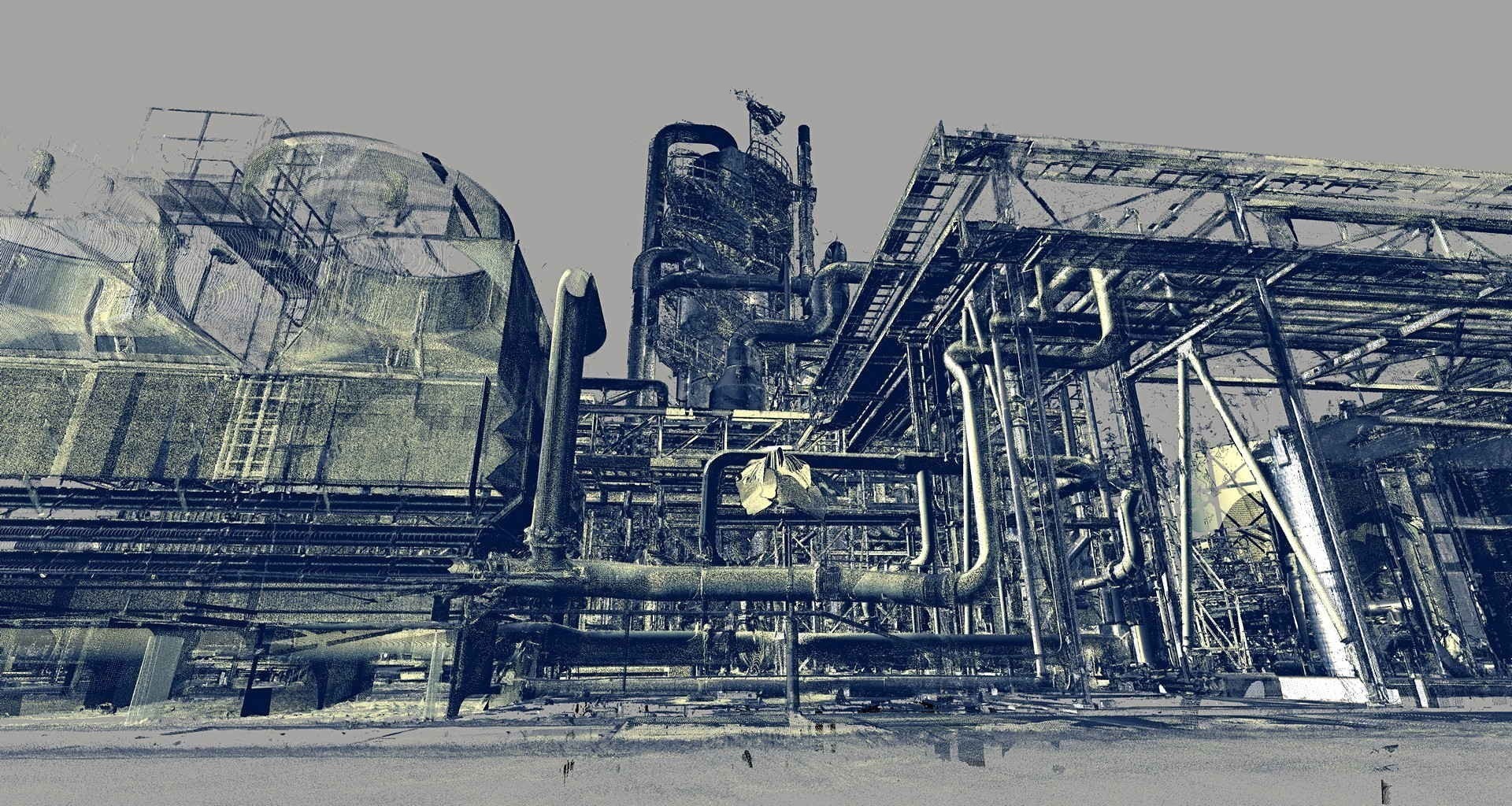

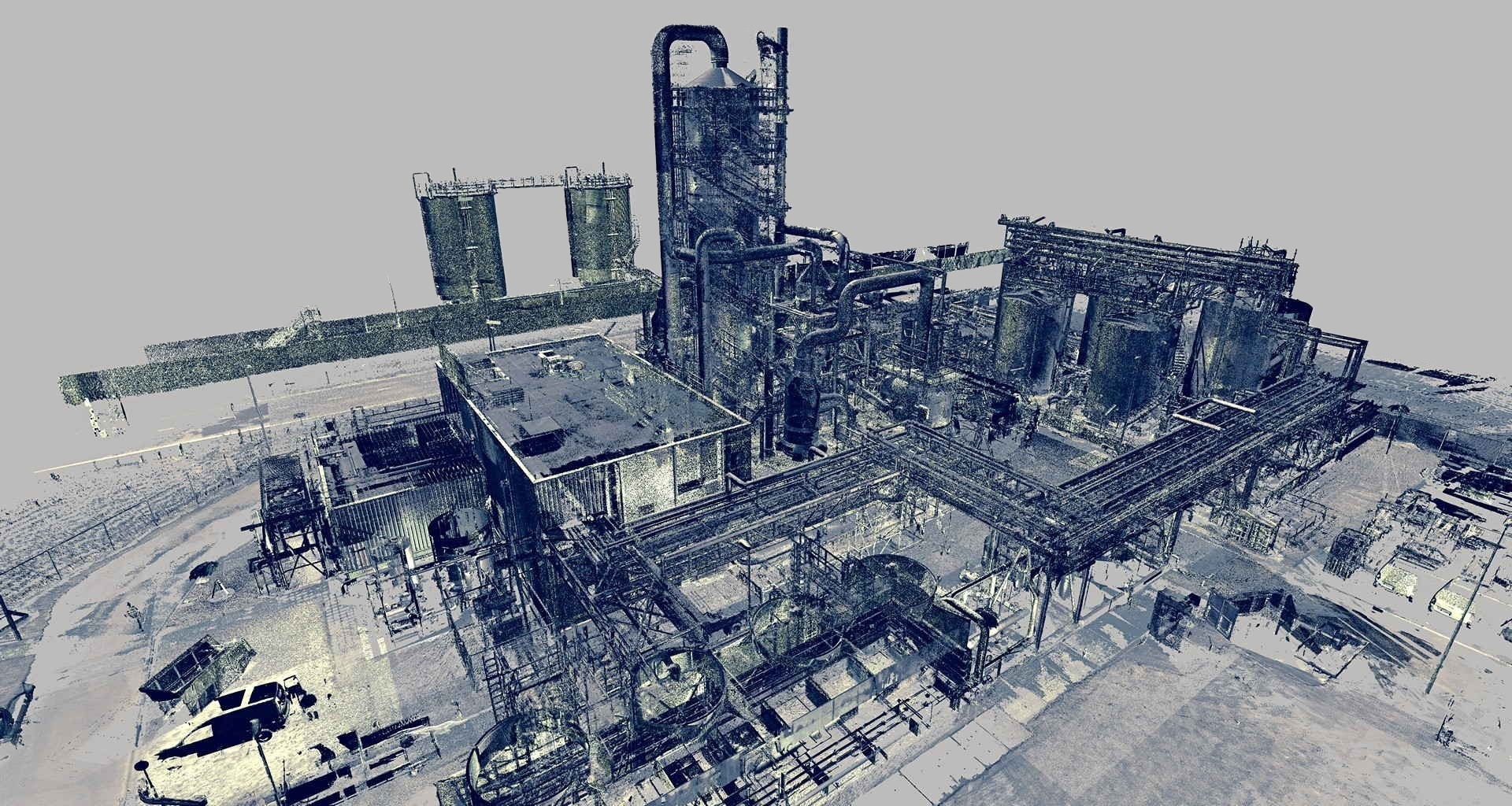

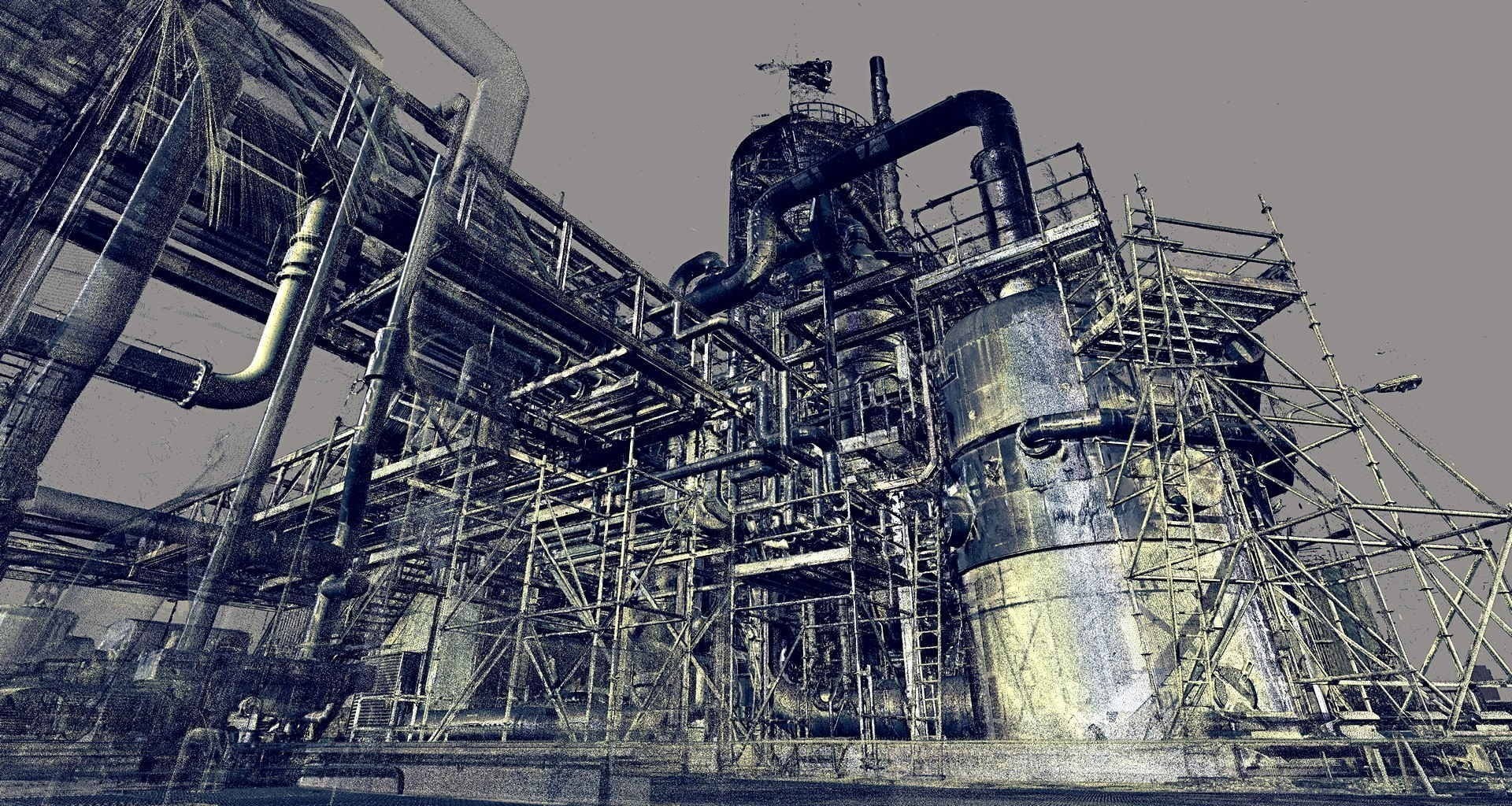

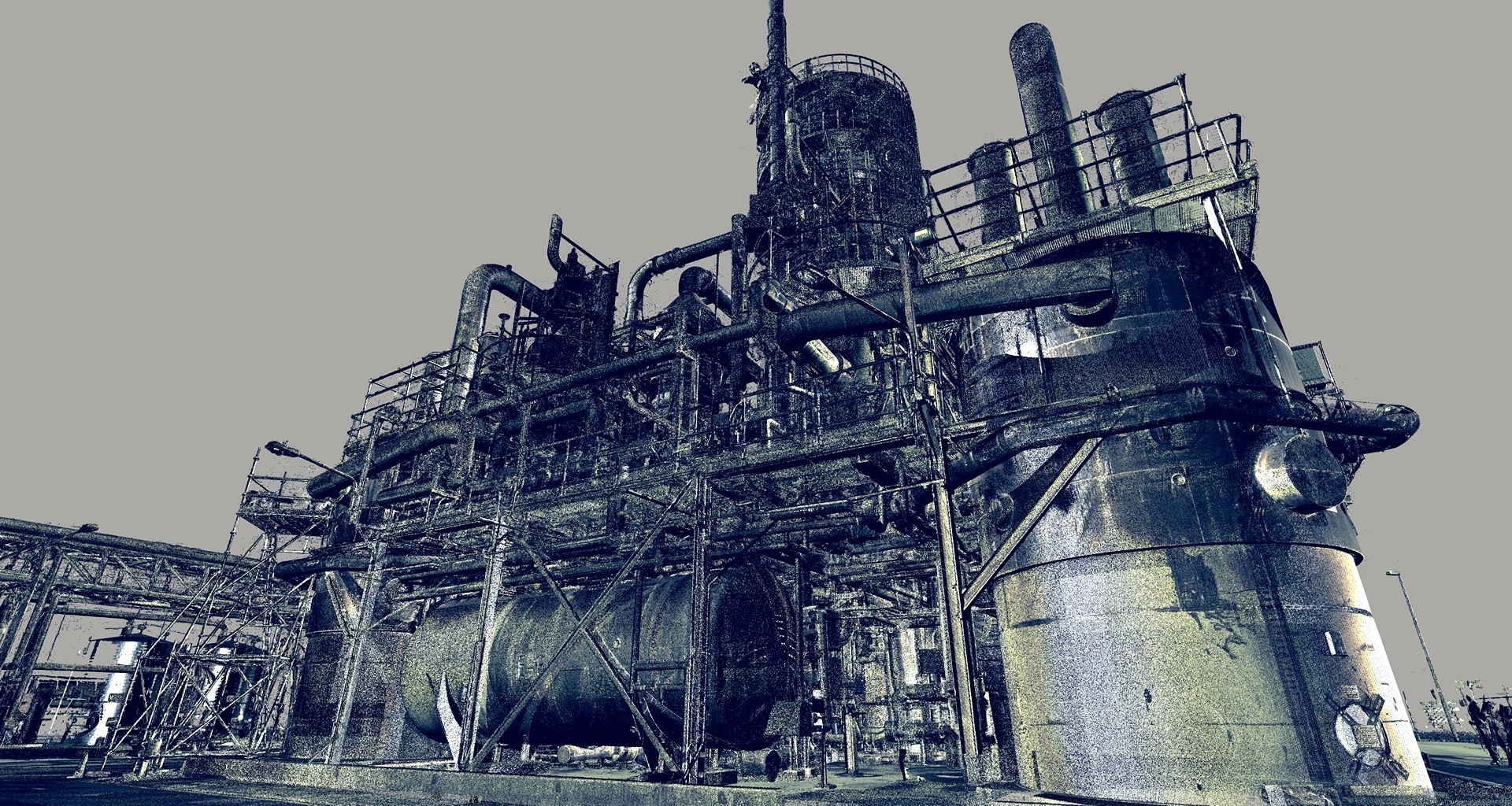

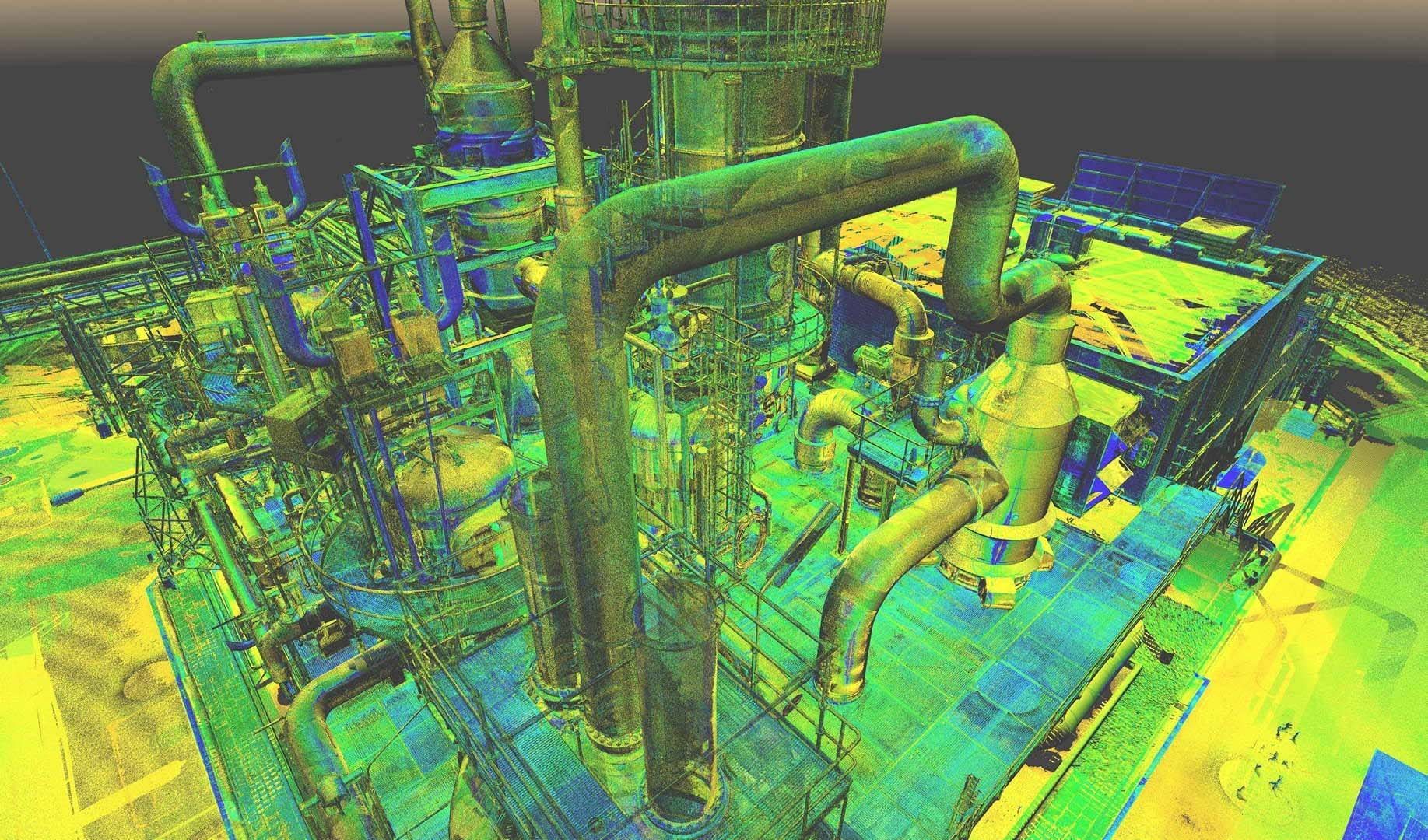

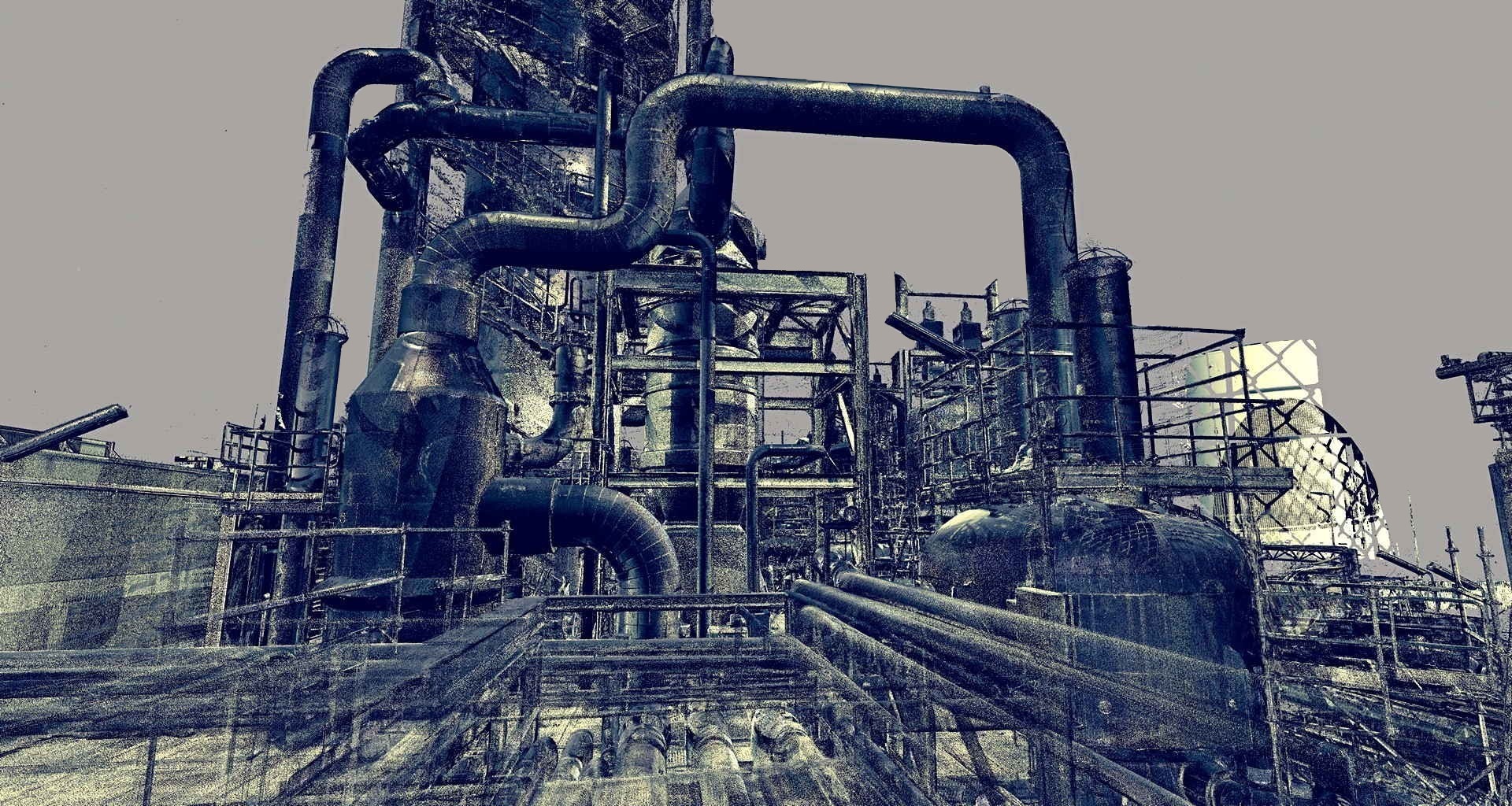

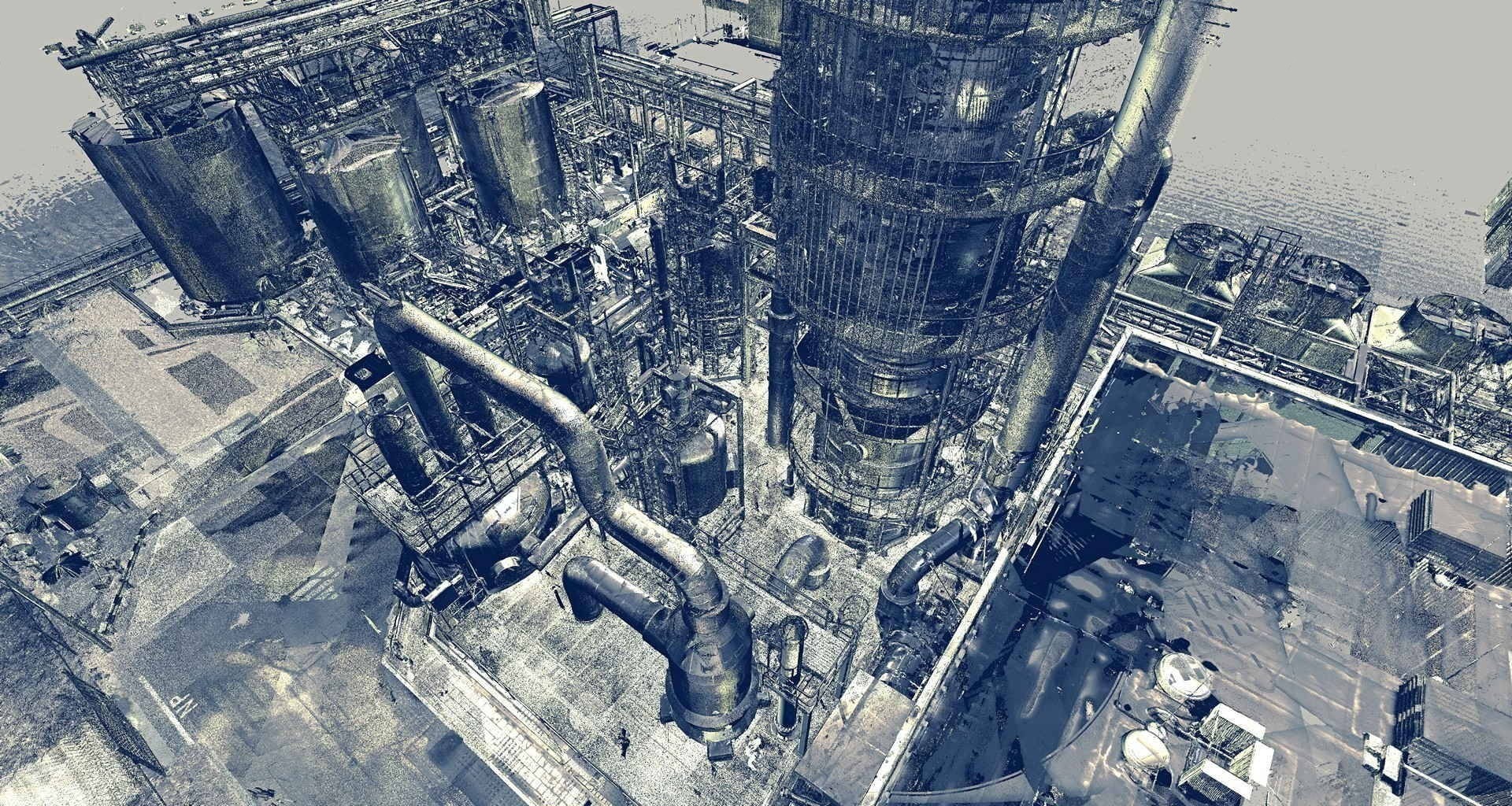

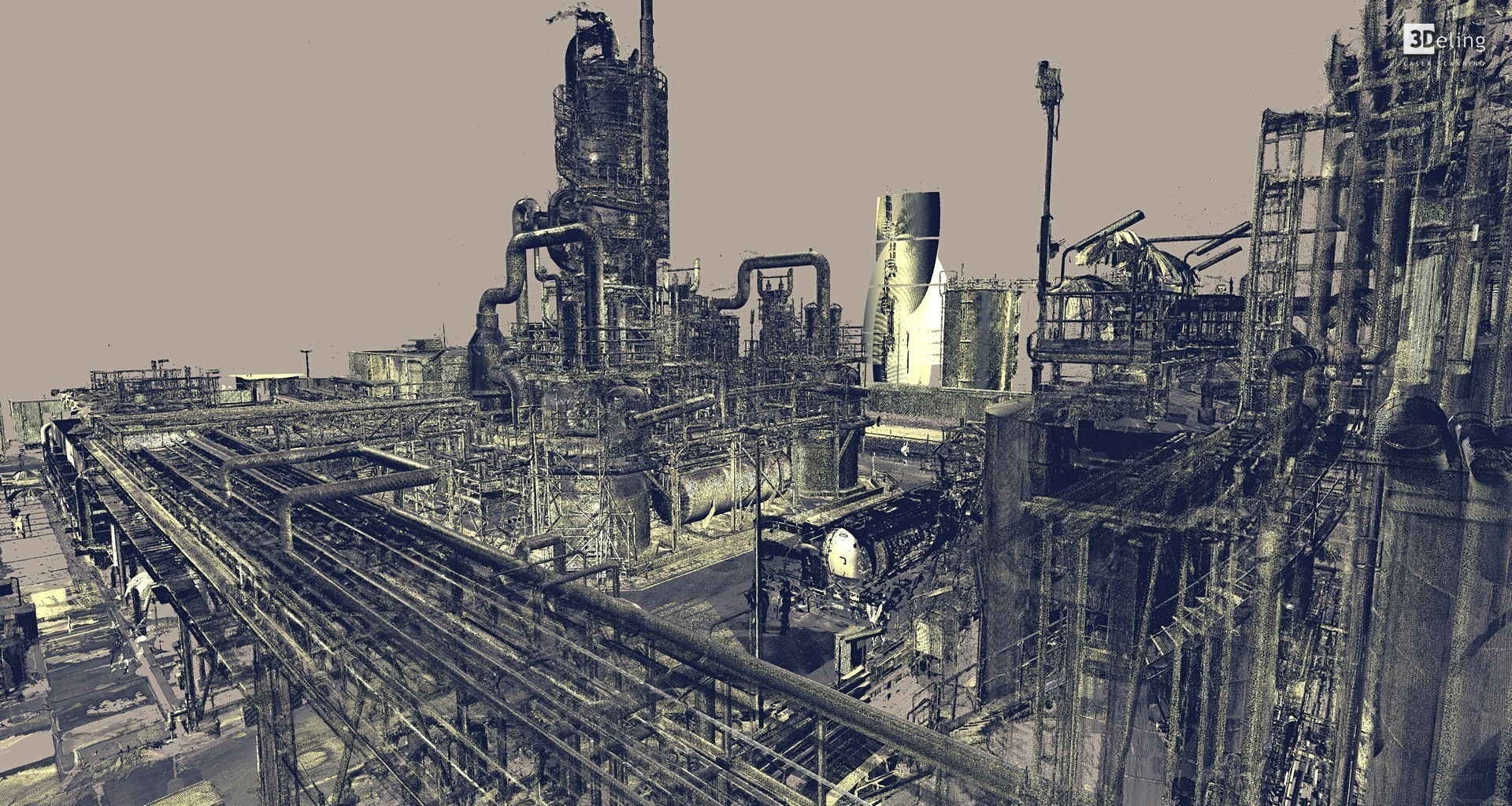

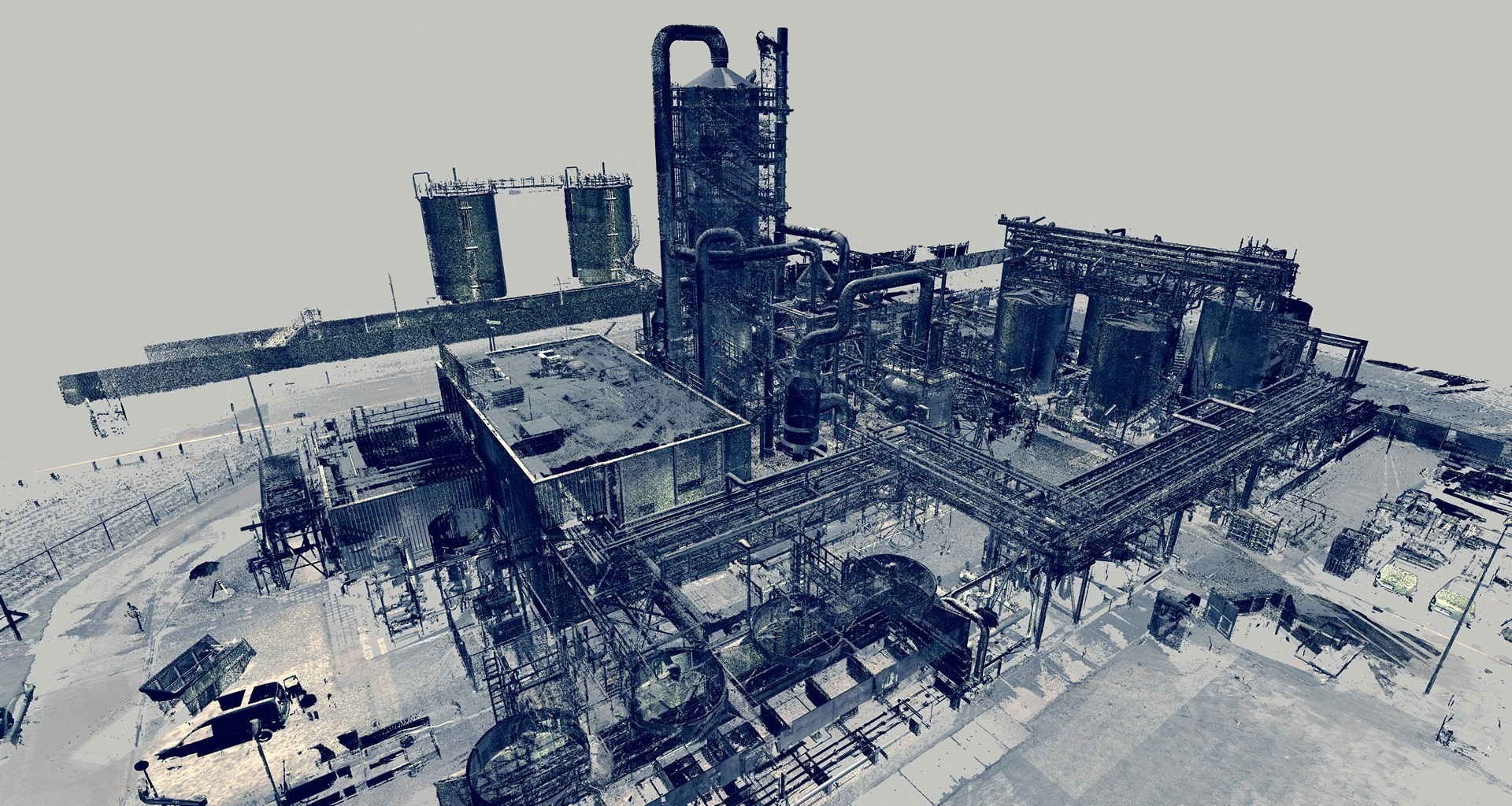

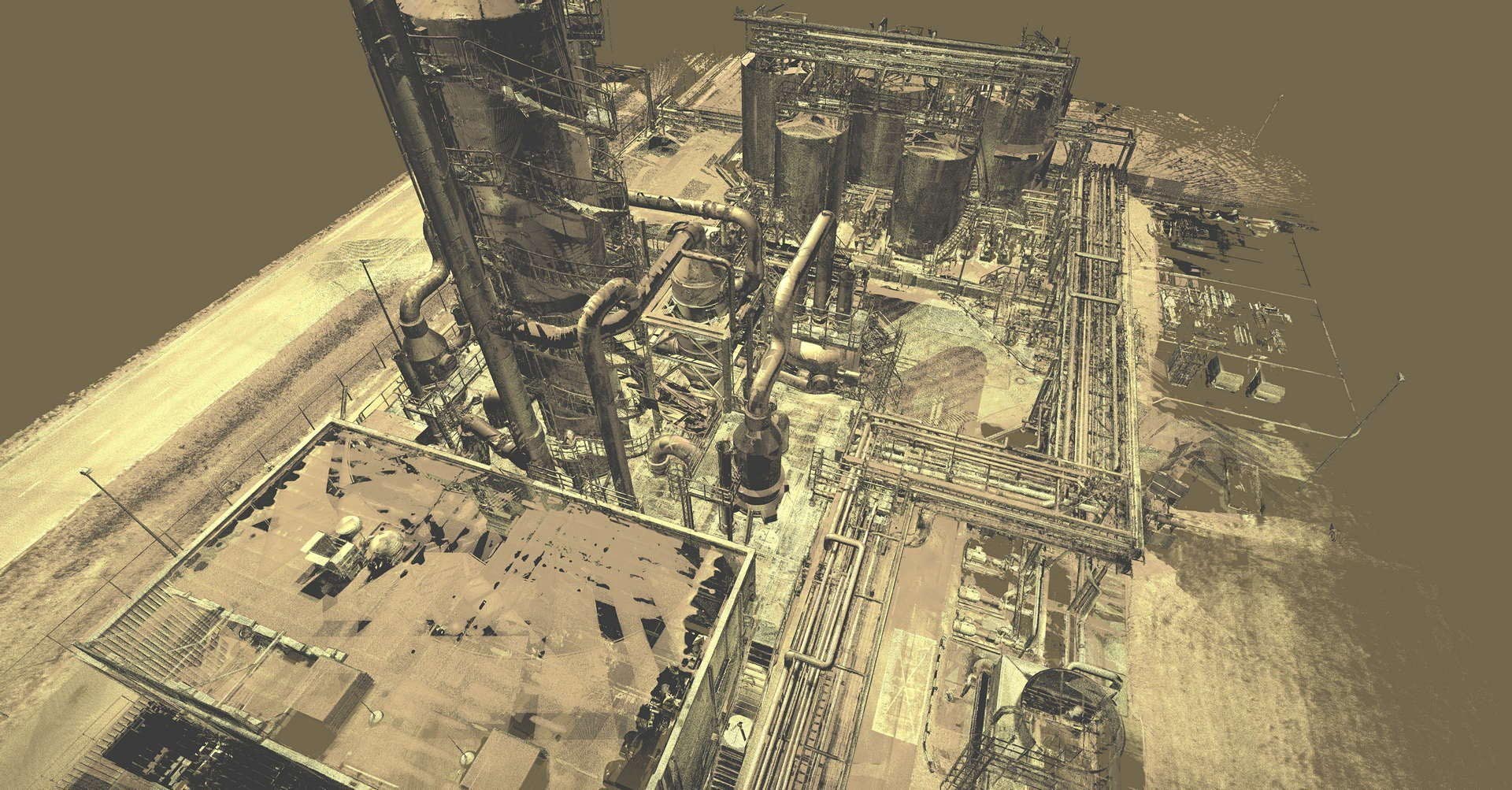

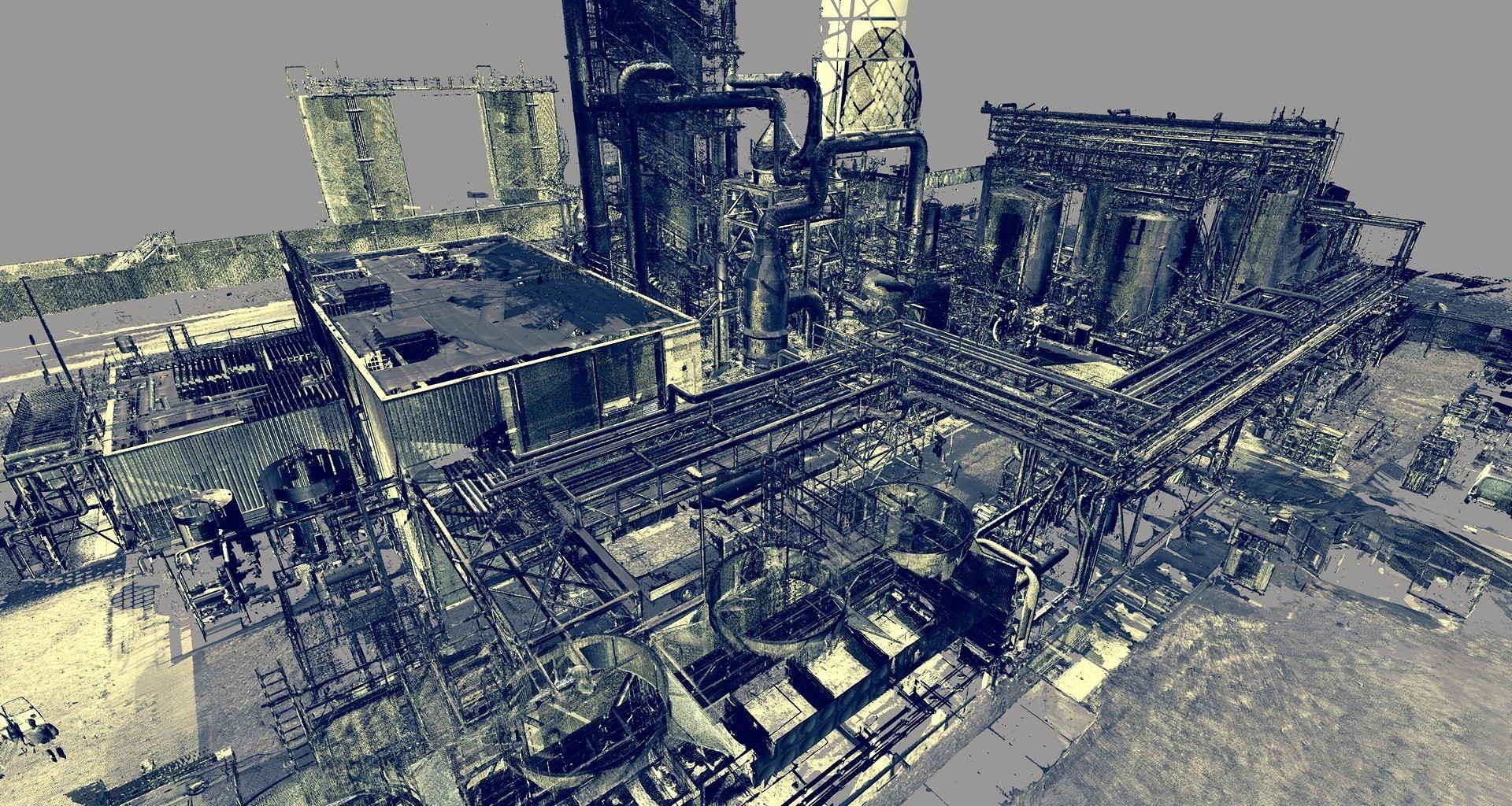

This mid-sized chemical plant located in the Netherlands was fully laser scanned with TruView being generated in intensity colours. This site was particularly challenging to complete due to the presence of dense steam clouds in many locations.

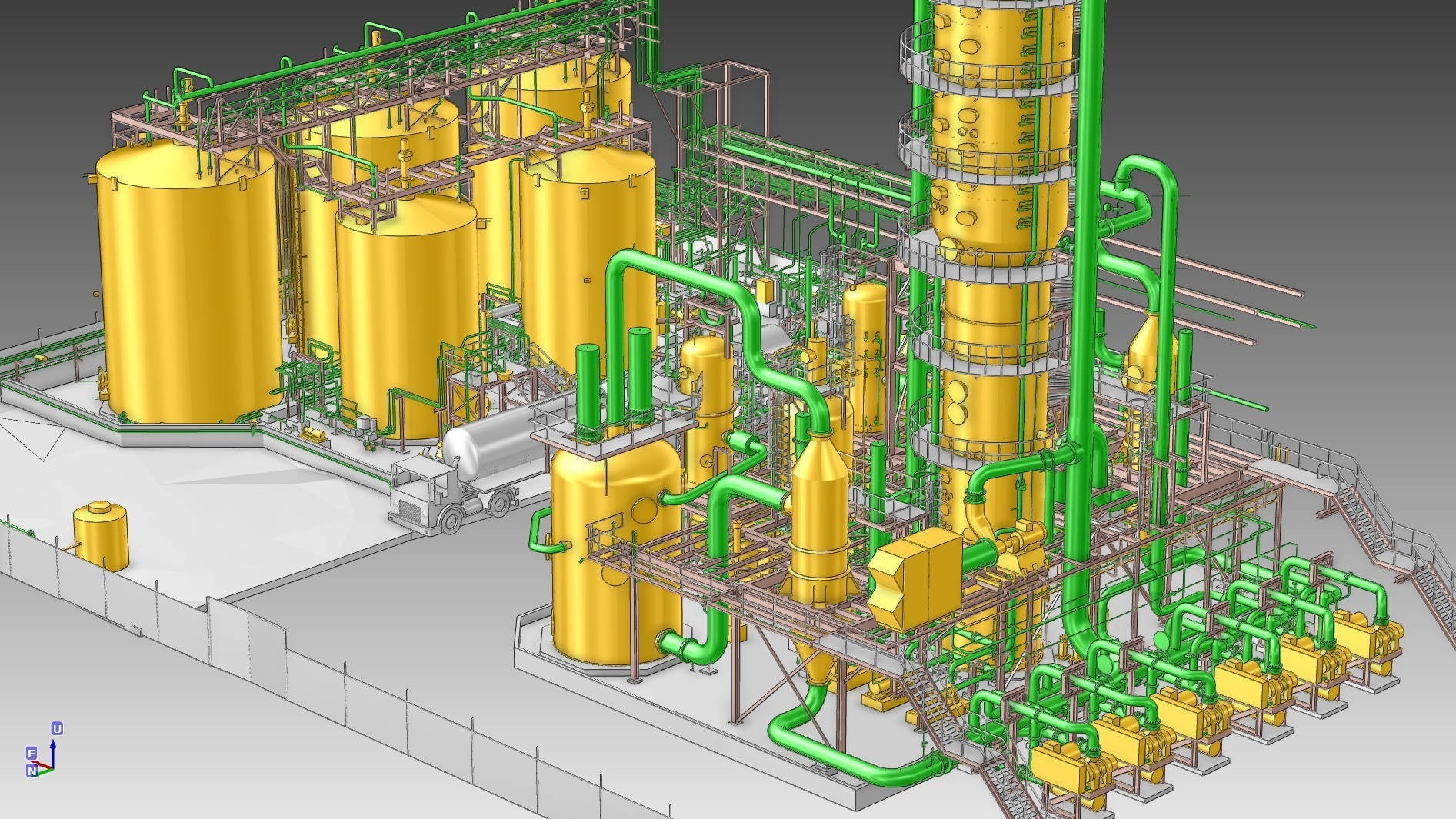

Since the site remained operational throughout the survey process it was a case of waiting for favourable wind conditions to complete individual scans. Following point cloud capture 3Deling was commissioned to produce an AVEVA PDMS Model with full catalogue.
We also provided clash verification services between the as built model and newly designed installations ensuring design integrity before moving to the construction stage.
